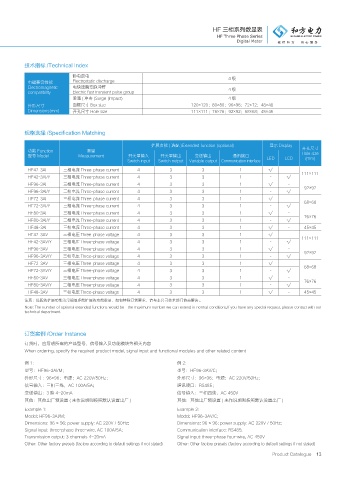

P. 17

HF 三相系列数显表
                                                                            HF Three Phase Series
                                                                                  Digital Meter



         技术指标 /Technical Index

                          静电放电                                                  4级
           电磁兼容性能         Electrostatic discharge
           Electromagnetic   电快速瞬变脉冲群                                           4级
           compatibility  Electric fast transient pulse group
                          浪涌 ( 冲击 )Surge (impact)                               4级
           外形尺寸           面框尺寸 Box size                            120×120;80×80;96×96;72×72;48×48
           Dimensions(mm)  开孔尺寸 Hole size                          111×111;76×76;92×92;68×68;45×45



          规格选择 /Specification Matching

                                                     扩展功能 ( 选配 )Extended function (optional)  显示 Display
           功能 Function         测量                                                                        开孔尺寸
           型号 Model         Measurement      开关量输入      开关量输出       变送输出         通讯接口        LED   LCD   Hole size
                                                                                                          (mm)
                                             Switch input  Switch output  Variable output  Communication interface
           HF42-3AI    三相电流 Three-phase current  4         3          3            1         √      -
                                                                                                         111×111
           HF42-3AI/Y  三相电流 Three-phase current  4         3          3            1         -      √
           HF96-3AI    三相电流 Three-phase current  4         3          3            1         √      -
                                                                                                          92×92
           HF96-3AI/Y  三相电流 Three-phase current  4         3          3            1         -      √
           HF72-3AI    三相电流 Three-phase current  4         3          3            1         √      -
                                                                                                          68×68
           HF72-3AI/Y  三相电流 Three-phase current  4         3          3            1         -      √
           HF80-3AI    三相电流 Three-phase current  4         3          3            1         √      -     76×76
           HF80-3AI/Y  三相电流 Three-phase current  4         3          3            1         -      √
           HF48-3AI    三相电流 Three-phase current  4         3          3            1         √      -     45×45
           HF42-3AV    三相电压 Three-phase voltage  4         3          3            1         √      -    111×111
           HF42-3AV/Y  三相电压 Three-phase voltage  4         3          3            1         -      √
           HF96-3AV    三相电压 Three-phase voltage  4         3          3            1         √      -
                                                                                                          92×92
           HF96-3AV/Y  三相电压 Three-phase voltage  4         3          3            1         -      √
           HF72-3AV    三相电压 Three-phase voltage  4         3          3            1         √      -
                                                                                                          68×68
           HF72-3AV/Y  三相电压 Three-phase voltage  4         3          3            1         -      √
           HF80-3AV    三相电压 Three-phase voltage  4         3          3            1         √      -
                                                                                                          76×76
           HF80-3AV/Y  三相电压 Three-phase voltage  4         3          3            1         -      √
           HF48-3AV    三相电压 Three-phase voltage  4         3          3            1         √      -     45×45
          注意:选配的扩展功能为常规最多能扩展的功能数量,如有特殊订货要求,请与本公司技术部门协商解决。
          Note: The number of optional extended functions would be   the maximum number we can extend in normal conditions,If you have any special request, please contact with our
          technical department.



          订货实例 /Order Instance
          订货时,应写明所需的产品型号,信号输入及功能模块等相关内容
          When ordering, specify the required product model, signal input and functional modules and other related content
          例 1:                                                例 2:
          型号:HF96-3AI/M;                                      型号:HF96-3AV/C;
          外形尺寸:96×96;电源:AC 220V/50Hz;                         外形尺寸:96×96;电源:AC 220V/50Hz;
          信号输入:三相三线,AC 100A/5A;                               通讯接口:RS485;
          变送输出:3 路 4~20mA                                     信号输入:三相四线,AC 450V
          其他:其他出厂预设置 ( 未作说明则按照默认设置出厂 )                        其他:其他出厂预设置 ( 未作说明则按照默认设置出厂 )
          Example 1:                                          Example 2:
          Model: HF96-3AI/M;                                  Model: HF96-3AV/C;
          Dimensions: 96 × 96; power supply: AC 220V / 50Hz;  Dimensions: 96 × 96; power supply: AC 220V / 50Hz;
          Signal input: three-phase three-wire, AC 100A/5A;   Communication interface: RS485;
          Transmission output: 3 channels 4~20mA              Signal input: three-phase four-wire, AC 450V
          Other: Other factory presets (factory according to default settings if not stated)  Other: Other factory presets (factory according to default settings if not stated)
