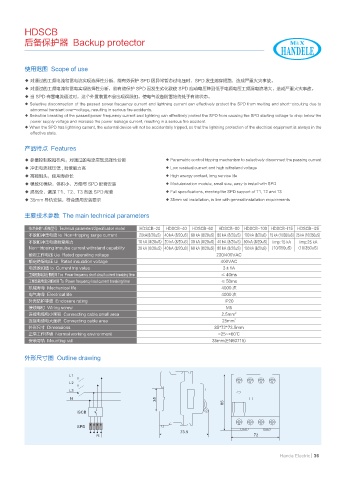

P. 43

HDSCB
          后备保护器  Backup protector




          使用范围  Scope of use

          ◆ 对通过的工频电流和雷电流实现选择性分断，能有效保护 SPD 因异常暂态过电压时，SPD 发生熔穿短路，造成严重火灾事故。
          ◆ 对通过的工频电流和雷电实现选择性分断，能有效保护 SPD 因发生劣化致使 SPD 启动电压降到低于电源电压工频漏电流增大，造成严重火灾事故。
          ◆ 当 SPD 有雷电流通过时，这个外置装置不会出现误脱扣，使电气设备防雷始终处于有效状态。
          ◆ Selective disconnection of the passed power frequency current and lightning current can effectively protect the SPD from melting and short-circuiting due to
           abnormal transient over-voltage, resulting in serious fire accidents.
          ◆ Selective breaking of the passed power frequency current and lightning can effectively protect the SPD from causing the SPD starting voltage to drop below the
           power supply voltage and increase the power leakage current, resulting in a serious fire accident.
          ◆ When the SPD has lightning current, the external device will not be accidentally tripped, so that the lightning protection of the electrical equipment is always in the
           effective state.

          产品特点  Features

          ◆ 参量控制脱扣机构，对通过的电流实现选择性分断                        ◆ Parametric control tripping mechanism to selectively disconnect the passing current
          ◆ 冲击电流残压低 , 耐受能力高                               ◆ Low residual current and high withstand voltage
          ◆ 高能触头，使用寿命长                                    ◆ High energy contact, long service life
          ◆ 模数化模块，体积小，方便与 SPD 配套安装                        ◆ Modularization module, small size, easy to install with SPD
          ◆ 规格全，满足 T1、T2、T3 各级 SPD 配套                     ◆ Full specifications, meeting the SPD support of T1, T2 and T3
          ◆ 35mm 导轨安装，符合通用安装要求                            ◆ 35mm rail installation, in line with general installation requirements


          主要技术参数  The main technical parameters

           技术参数 \ 规格型号  Technical parameters\Specification model  HDSCB-20  HDSCB-40  HDSCB-60  HDSCB-80  HDSCB-100 HDSCB-I15  HDSCB-I25
           不脱扣冲击电流 Ie  Non-tripping surge current  20kA(8/20uS) 40 kA (8/20uS) 60 kA (8/20uS) 80 kA (8/20uS) 100 kA (8/20uS) 15 kA (10/350uS) 25 kA (10/350uS)
           不脱扣冲击电流耐受能力                           10 kA (8/20uS) 20 kA (8/20uS) 30 kA (8/20uS) 40 kA (8/20uS) 50 kA (8/20uS)  Iimp:15 kA   Iimp:25 kA
           Non-tripping impulse current withstand capability  20 kA (8/20uS) 40 kA (8/20uS) 60 kA (8/20uS) 80 kA (8/20uS) 100 kA (8/20uS)  (10/350uS)  (10/350uS)
           额定工作电压 Ue  Rated operating voltage                              230/400VAC
           额定绝缘电压 Ui  Rated insulation voltage                               400VAC
           电流脱扣值 Io  Current trip value                                       3±1A
           工频短路电流分断时间 Tos  Power frequency short circuit current breaking time  ≤ 40ms
           工频负载电流分断时间 To  Power frequency load current breaking time         ≤ 50ms
           机械寿命  Mechanical life                                             4000 次
           电气寿命  Electrical life                                             4000 次
           外壳防护等级  Enclosure rating                                           IP20
           接线螺钉  Wiring screw                                                  M5
           连接电缆电小面积  Connecting cable small area                             2.5mm 2
           连接电缆电大面积  Connecting cable area                                   25mm 2
           外形尺寸  Dimensions                                                85*72*73.5mm
           正常工作环境  Normal working environment                               -25~+60℃
           安装导轨  Mounting rail                                            35mm(EN60715)

          外形尺寸图  Outline drawing
