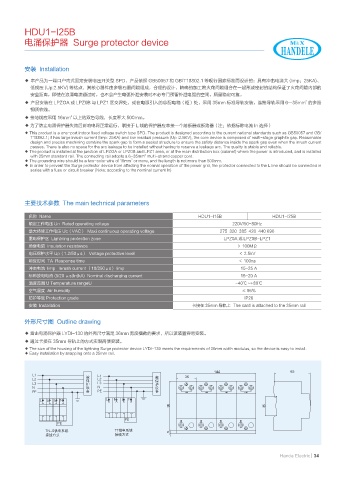

P. 41

HDU1-I25B
          电涌保护器  Surge protector device




          安装  Installation

          ◆ 本产品为一端口户内式固定安装电压开关型 SPD，产品依据 GB50057 和 GB/T18802.1 等现行国家标准而设计的；具有冲击电流大 (limp：25KA)、
           低残压 (Up:2.5KV) 等优点，其核心器件由多级石墨间隙组成，合理的设计、精确的加工将火花间隙组合在一起形成密封的结构保证了火花间隙内部的
           安全距离，即使在浪涌电流通过时，也不会产生电弧外泄安装时不必专门预留外泄电弧的空间。质量稳定可靠。
                                                                                                          2
          ◆ 产品安装在 LPZOA 或 LPZ0B 与 LPZ1 区交界处，或在电源引入的总配电箱（柜）处，采用 35mm 标准导轨安装。连接导轨采用 6—35mm 的多股
           铜质软线。
                         2
          ◆ 接地线应采用 16mm 以上的双色导线，长度不大 500mm。
          ◆ 为了防止电涌保护器失效后影响电网正常运行，联接于 L 线的保护器应串接一个熔断器或断路器（注：依据标称电流 In 选择）
          ◆ This product is a one-port indoor fixed voltage switch type SPD. The product is designed according to the current national standards such as GB50057 and GB/
           T18802.1; it has large inrush current (limp: 25KA) and low residual pressure (Up :2.5KV), the core device is composed of multi-stage graphite gap. Reasonable
           design and precise machining combine the spark gap to form a sealed structure to ensure the safety distance inside the spark gap even when the inrush current
           passes. There is also no space for the arc leakage to be installed without having to reserve a leakage arc. The quality is stable and reliable.
          ◆ The product is installed at the junction of LPZOA or LPZ0B and LPZ1 area, or at the main distribution box (cabinet) where the power is introduced, and is installed
                                                   2
           with 35mm standard rail. The connecting rail adopts a 6-35mm  multi-strand copper cord.
                                              2
          ◆ The grounding wire should be a two-color wire of 16mm  or more, and the length is not more than 500mm.
          ◆ In order to prevent the Surge protector device from affecting the normal operation of the power grid, the protector connected to the L line should be connected in
           series with a fuse or circuit breaker (Note: according to the nominal current In)



          主要技术参数  The main technical parameters

           名称  Name                                                  HDU1-I15B                 HDU1-I25B
           额定工作电压 Un  Rated operating voltage                                    220V/50-80Hz
           最大持续工作电压 Uc（VAC）  Maxi continuous operating voltage               275  320  385  420  440 690
           雷电保护区  Lightning protection zone                                   LPZ0A 或 LPZ0B-LPZ1
           绝缘电阻  Insulation resistance                                             ＞ 100MΩ
           电压保护水平 Up（1.2/50μs）  Voltage protective level                           ＜ 2.5kV
           响应时间  TA  Response time                                                 ＜ 100ns
           冲击电流  limp   Inrush current （10/350μs） limp                              15~25 A
           标称放电电流 (8/20 μs)In(kA)  Nominal discharging current                      15~20 A
           温度范围 U Temperature rangeU                                              -40℃ ~+80℃
           空气湿度  Air humidity                                                       ≤ 95%
           防护等级 Protection grade                                                     IP20
           安装  Installation                                        卡接在 35mm 导轨上  The card is attached to the 35mm rail

          外形尺寸图  Outline drawing

          ◆ 雷击电涌保护器 LYDl-130 的外壳尺寸满足 36mm 宽度模数的要求，所以该装置容易安装。
          ◆ 通过卡接在 35mm 导轨上的方式实现简便安装。
          ◆ The size of the housing of the lightning Surge protector device LYDl-130 meets the requirements of 36mm width modulus, so the device is easy to install.
          ◆ Easy installation by snapping onto a 35mm rail.

                                                                           144                       65
            -                  㷗   -                   㷗         36
            -                  ԉ ័  -                  ԉ
            -                  䃪   -                   ័ 䃪
            /                  ำ   /                   ำ
            1&                     1&
               -  -  -/              -  -  -/
                                                           90                               35

                                            1&
                     1&
                 5/ 4Ӈ⩡㈧㐋                55Ӈ⩡㈧㐋            5
                 ᣑ㏫᫥ᐻ                    ᣑ㏫᫥ᐻ
