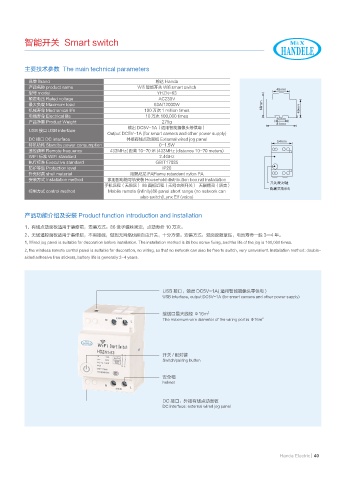

智能开关 Smart switch

主要技术参数 The main technical parameters

品牌 Brand 翰达 Handa
产品名称 product name Wifi 智能开关 Wifi smart switch NN
型号 model YHZN-63
额定电压 Rated voltage AC230V
最大负载 Maximum load 63A/12000W NN
机械寿命 Mechanical life 100 万次 1 million times NN
电器寿命 Electrical life 10 万次 100,000 times NN
产品净重 Product Weight 275g NN
输出 DC5V-1A（适用智能摄像头等供电）
USB 接口 USB interface
Output DC5V-1A (for smart camera and other power supply)
DC 接口 DC interface 外接有线点动面板 External wired jog panel NN
待机功耗 Standby power consumption 0-1.5W
遥控频率 Remote frequency 433MHz( 距离 10-70 米 )433MHz (distance 10-70 meters)
WIFI 标准 WIFI standard 2.4GHz
执行标准 Executive standard GB/T17885
防护等级 Protection level IP20
外壳材质 shell material 阻燃尼龙 PAFlame retardant nylon PA
安装方式 Installation method 家用配电箱导轨安装 Household distribution box rail installation
ᐬڟ 䙹ᄥ䩚
手机远程（无限远） 86 面板近程（无网也能开关） 天猫精灵（语音）
䮼㫻ᐻᠳ⹦▛
控制方式 control method Mobile remote (infinity)86 panel short range (no network can
also switch)Lynx Elf (voice)

产品功能介绍及安装 Product function introduction and installation
1、有线点动面板适用于装修前，安装方式：86 盒子螺丝固定，点动寿命 10 万次。
2、无线遥控面板适用于装修后，不用接线，做到无网络也能自由开关，十分方便。安装方式：双面胶随意贴，电池寿命一般 3—4 年。
1, Wired jog panel is suitable for decoration before installation. The installation method is 86 box screw fixing, and the life of the jog is 100,000 times.
2, the wireless remote control panel is suitable for decoration, no wiring, so that no network can also be free to switch, very convenient. Installation method: double-
sided adhesive free stickers, battery life is generally 3-4 years.

USB 接口，输出 DC5V-1A( 适用智能摄像头等供电 )
USB interface, output DC5V-1A (for smart camera and other power supply)

接线口最大线径 Φ16m 2
The maximum wire diameter of the wiring port is Φ16m 2

开关 / 配对键
Switch/pairing button

安全帽
helmet

DC 接口：外接有线点动面板
DC interface: external wired jog panel
