P. 37

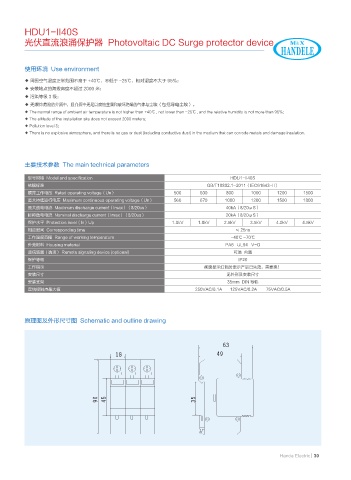

HDU1-II40S
          光伏直流浪涌保护器  Photovoltaic DC Surge protector device




          使用环境  Use environment

          ◆ 周围空气温度正常范围不高于 +40℃,不低于 -25℃,相对湿度不大于 95%;
          ◆ 安装地点的海拨高度不超过 2000 米;
          ◆ 污染等级 3 级;
          ◆ 无爆炸危险的介质中,且介质中无足以腐蚀金属和破坏绝缘的气体与尘埃(包括导电尘埃)。
          ◆ The normal range of ambient air temperature is not higher than +40℃ , not lower than -25℃ , and the relative humidity is not more than 95%;
          ◆ The altitude of the installation site does not exceed 2000 meters;
          ◆ Pollution level 3;
          ◆ There is no explosive atmosphere, and there is no gas or dust (including conductive dust) in the medium that can corrode metals and damage insulation.





          主要技术参数  The main technical parameters

           型号规格  Model and specification                                        HDU1-II40S
           依据标准                                                         GB/T18802.1-2011(IEC61643-II)
           额定工作电压  Rated operating voltage(Un)               500      600      800     1000     1200     1500
           最大持续运行电压  Maximum continuous operating voltage(Un)  560    670     1000     1200     1500     1800
           最大放电电流  Maximum discharge current(Imax)(8/20us)                     40kA(8/20μS)
           标称放电电流  Nominal discharge current(Imax)(8/20us)                     20kA(8/20μS)
           保护水平  Protection level(In)Up                     1.8kV    1.8kV    2.5kV    3.5kV    4.0kV    4.5kV
           相应时间  Corresponding time                                               ≤ 25ns
           工作温度范围  Range of working temperature                                 -40℃ ~70℃
           外壳材料  Housing material                                              PA6   UL94   V-O
           遥信装置(选项) Remote signaling device (optional)                           可选  内置
           保护等级                                                                    IP20
           工作指示                                                        视窗显示红色时表示产品已失效,需更换!
           安装尺寸                                                                见外形及安装尺寸
           安装支架                                                                35mm  DIN 导轨
           遥信接触点最大值                                                 250VAC/0.1A       125VAC/0.2A        75VAC/0.5A




          原理图及外形尺寸图  Schematic and outline drawing










                                           -    -    -
