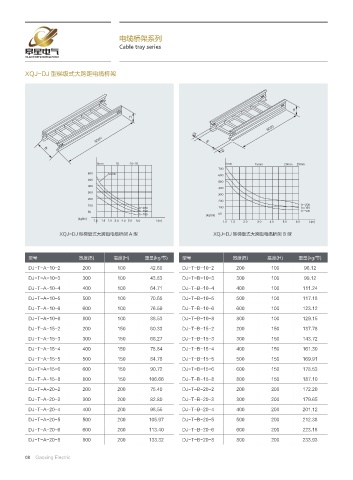

XQJ-DJ 型梯级式大跨距电缆桥架

)
)

#
#

NN NN NN NN NN

I

I
I I
I I
I LHG N
LHG N
- N - N
XQJ-DJ 型梯级式大跨距电缆桥架 A 型 XQJ-DJ 型梯级式大跨距电缆桥架 B 型
型号 宽度(B) 高度(H) 重量(kg/节) 型号 宽度(B) 高度(H) 重量(kg/节)
DJ-T-A-10-2 200 100 42.60 DJ-T-B-10-2 200 100 96.12
DJ-T-A-10-3 300 100 43.83 DJ-T-B-10-3 300 100 99.12
DJ-T-A-10-4 400 100 64.71 DJ-T-B-10-4 400 100 111.24
DJ-T-A-10-5 500 100 70.65 DJ-T-B-10-5 500 100 117.18
DJ-T-A-10-6 600 100 76.59 DJ-T-B-10-6 600 100 123.12
DJ-T-A-10-8 800 100 88.53 DJ-T-B-10-8 800 100 129.15

DJ-T-A-15-2 200 150 60.33 DJ-T-B-15-2 200 150 137.78
DJ-T-A-15-3 300 150 66.27 DJ-T-B-15-3 300 150 143.72
DJ-T-A-15-4 400 150 78.84 DJ-T-B-15-4 400 150 161.30
DJ-T-A-15-5 500 150 84.78 DJ-T-B-15-5 500 150 169.91
DJ-T-A-15-6 600 150 90.72 DJ-T-B-15-6 600 150 178.53
DJ-T-A-15-8 800 150 106.66 DJ-T-B-15-8 800 150 187.10
DJ-T-A-20-2 200 200 75.40 DJ-T-B-20-2 200 200 172.20

DJ-T-A-20-3 300 200 82.80 DJ-T-B-20-3 300 200 179.65
DJ-T-A-20-4 400 200 98.55 DJ-T-B-20-4 400 200 201.12
DJ-T-A-20-5 500 200 105.97 DJ-T-B-20-5 500 200 212.38
DJ-T-A-20-6 600 200 113.40 DJ-T-B-20-6 600 200 223.16
DJ-T-A-20-8 800 200 133.32 DJ-T-B-20-8 800 200 233.93
