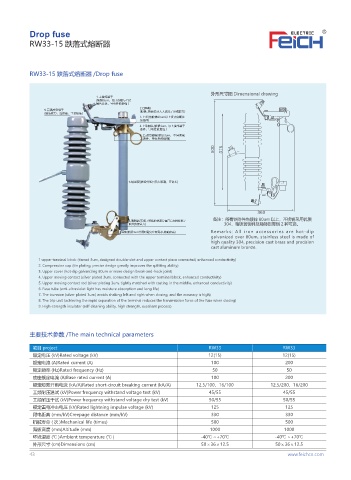

Drop fuse
           RW33-15 跌落式熔断器





           RW33-15 跌落式熔断器 /Drop fuse



                                                                          外形尺寸图 Dimensional drawing
                                    ̷ᣒ㏬〜ၽ
                                   䩭䩎 VN喑䃫䃎ࣹἪ̷̻ᣒ
                                  㼓❴䔋Ҁ喑ᄩ⩢ᕔ㘪෋ᑧ喎
                                                   ࢸ䛷፪
                  倅ᑧᏓ㐊㑅ၽ                          䩭䩎喑㇫⶛䃫䃎๔๔᣽倅γܳ〜㘪߈
                 㜗∮㘪߈ȠᑧᏓ倅Ƞጒ㞧ᲮҠ
                                                   ̷Ⰳ ☚䩭䨹  VNВ̷䃫䃎ड़᫚ᠯ
                                                 䧖䔋Ҁ
                                                   ̷ߕ㼓๡ 䩭䨣 VN喑̷̻ᣒ㏬〜ၽ
                                                 䔋Ҁ喑ᄩ⩢ᕔ㘪෋ᑧ喎
                                                   ̷ߕᣒ㼓᷿ 䩭䨣 VN喑͚䬡㉔䙺
                                                 ̷䨥У喑ᄩ⩢ᕔ㘪෋ᑧ
                                                                           500  375  35




                                               ⛁͊ノ ោ㉘ใ㏬ڤิᰶ॥⒛喑ᄬপ䪬                                PD
                                                                                             PD


                                                                                          360
                                                                          备注：所有铁附件热镀锌 80um 以上，不锈钢采用优质
                                               䌠㙞க ჋⣝γ㏵〜⮱ᔘ䕌ܳ⻨ౕव䬥ᬣ䭺ѻγ
                                             ⛁͊⮱э䔮߈                           304，精铸黄铜件及精铸铝青铜 2 种可选。
                                            㕠䒡 䩭䨣 VNव䬥ᬣ䖬ٺጓठ᭰ߕ喑㇫⶛Ꮣ倅        Remark s: All iron accessories are hot-dip
                                                                          galvanized over 80um, stainless steel is made of
                                                                          high quality 304, precision cast brass and precision
                                                                          cast aluminum bronze.
              1 upper terminal block (tinned 3um, designed double-slot and upper contact piece connected, enhanced conductivity)
              2. Compression cap (tin plating, precise design greatly improves the splitting ability)
              3. Upper cover (hot-dip galvanizing 80um or more design break-and-hook joint)
              4. Upper moving contact (silver plated 3um, connected with the upper terminal block, enhanced conductivity)
              5. Upper moving contact rod (silver plating 3um, tightly matched with casting in the middle, enhanced conductivity)
              6. Fuse tube (anti-ultraviolet light has moisture absorption and long life)
              7. The trunnion (silver plated 3um) avoids shaking left and right when closing, and the accuracy is high)
              8. The trip unit (achieving the rapid separation of the terminal reduces the transmission force of the fuse when closing)
              9. High-strength insulator (self-cleaning ability, high strength, excellent process)




           主要技术参数 /The main technical parameters

            项目 project                                                   RW33                     RW33
            额定电压 (kV)Rated voltage (kV)                                  12(15)                   12(15)
            额定电流 (A)Rated current (A)                                     100                      200
            额定频率 (Hz)Rated frequency (Hz)                                 50                        50
            底座额定电流 (A)Base rated current (A)                              100                      200
            额定短路开断电流 (kA/A)Rated short-circuit breaking current (kA/A)  12.5/100、16/100       12.5/200、16/200
            工频耐压温试 (kV)Power frequency withstand voltage test (kV)       45/55                    45/55
            工频耐压干试 (kV)Power frequency withstand voltage dry test (kV)   50/55                    50/55
            额定雷电冲击电压 (kV)Rated lightning impulse voltage (kV)             125                      125
            爬电距离 (mm/kV)Creepage distance (mm/kV)                         330                      330
            机械寿命 ( 次 )Mechanical life (times)                             500                      500
            海拔高度 (mm)Altitude (mm)                                       1000                      1000
            环境温度 (℃ )Ambient temperature (℃ )                         -40℃ ~+70℃                -40℃ ~+70℃
            外形尺寸 (cm)Dimensions (cm)                                  50×36×12.5                50×36×12.5
