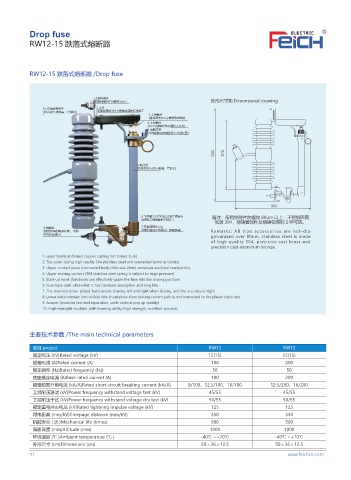

Drop fuse
           RW12-15 跌落式熔断器





           RW12-15 跌落式熔断器 /Drop fuse




                                  ̷ᣒ㏬〜ၽ
                                  䩭䩎⮱䨉䨥У☚䩭䩎 VN喎                           外形尺寸图 Dimensional drawing
                   倅ᑧᏓ㐊㑅ၽ           ̷Ⰳ
                 㜗∮㘪߈ ᑧᏓ倅 ጒ㞧ᲮҠ     䛴⩕х䉕⮱   ̺䨵䧏ࣷ䔋Ҁᣒ㏬〜ၽ
                                                      ̷ᣒ㼓❴
                                                     䔋ҀࣇᏓ NN ෋ᑧᄩ⩢ᕔ㘪
                                                      ̷ߕ㼓๡
                                                        ̺䨵䧏ᑦㅔឬऄ䒰๔ࢸ߈
                                                      ड़᫚ᠯ䧖
                                                     ࣶ䧖㘪ᰶ᩵ᄳ⛁ノᄩڒव䬥Ѻ㒛喎



                                                  ⛁͊ノ
                                                 ោ㉘ใ㏬ ڤิᰶ॥⒛喑ᄬপ䪬



                                                                                                1%


                                                    ̸䲆㼓๡ ̺ज㻮  ܳ≮❴䩭䨣⩢      备注：所有铁附件热镀锌 80um 以上，不锈钢采用
                                                  ≮䕇䌜̻䩭䨫䒡䨭̺Ⱕ䔋喎
                                                                           优质 304，精铸黄铜件及精铸铝青铜 2 种可选。
                  䌠㙞க                               㕠䒡 䩭䨣 VN
                 ᣽ӈᔘ䕌⮱〜䘕ܳ⻨喑 ⩢㐳                    व䬥ᬣ䖬ٺጓठ᭰ߕ喑㇫⶛Ꮣ倅          Remarks:  All  iron  accessories  are  hot-dip
                㐋㏬ᔘ䕌ᑦܧ
                                                                          galvanized over 80um, stainless steel is made
                                                                          of high quality 304, precision cast brass and
                                                                          precision cast aluminum bronze.
                1 upper terminal (tinned copper casting hot tinned 3um)
                2. Top cover (using high quality 304 stainless steel and connected terminal blocks)
                3. Upper contact piece (connected body thickness 2mm) enhances electrical conductivity
                4. Upper moving contact (304 stainless steel spring is subject to large pressure)
                5. Start-up hook (fork hook can effectively guide the fuse into the closing position)
                6. Fuse tube (anti-ultraviolet. It has moisture absorption and long life)
                7. The trunnion (silver plated 3um) avoids shaking left and right when closing, and the accuracy is high)
                8. Lower static contact (not visible) (the shunt plate silver plating current path is not connected to the plated chain pin)
                9. Jumper (provides fast end separation, cable strands pop up quickly)
                10. High-strength insulator (self-cleaning ability, high strength, excellent process)



           主要技术参数 /The main technical parameters

            项目 project                                                   RW12                     RW12
            额定电压 (kV)Rated voltage (kV)                                  12(15)                   12(15)
            额定电流 (A)Rated current (A)                                     100                      200
            额定频率 (Hz)Rated frequency (Hz)                                 50                        50
            底座额定电流 (A)Base rated current (A)                              100                      200
            额定短路开断电流 (kA/A)Rated short-circuit breaking current (kA/A)  8/100、12.5/100、16/100  12.5/200、16/200
            工频耐压温试 (kV)Power frequency withstand voltage test (kV)       45/55                    45/55
            工频耐压干试 (kV)Power frequency withstand voltage dry test (kV)   50/55                    50/55
            额定雷电冲击电压 (kV)Rated lightning impulse voltage (kV)             125                      125
            爬电距离 (mm/kV)Creepage distance (mm/kV)                         330                      330
            机械寿命 ( 次 )Mechanical life (times)                             500                      500
            海拔高度 (mm)Altitude (mm)                                       1000                      1000
            环境温度 (℃ )Ambient temperature (℃ )                         -40℃ ~+70℃                -40℃ ~+70℃
            外形尺寸 (cm)Dimensions (cm)                                  50×36×12.5                50×36×12.5
