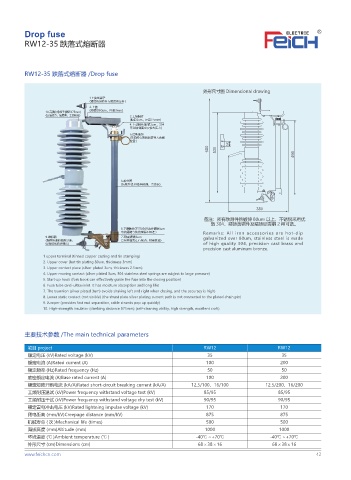

Drop fuse
          RW12-35 跌落式熔断器





         RW12-35 跌落式熔断器 /Drop fuse


                                                                       外形尺寸图 Dimensional drawing
                                 ̷ᣒ㏬〜ၽ
                                 䩭䩎⮱䨉䨥У̻䩭䩎۟ࢸУ喎
                                  ̷Ⰳ
                                 ☚䩭䩎  VN喑ࣇᏓ NN
                    倅ᑧᏓ㐊㑅ၽ ❙䌊   NN
                  㜗∮㘪߈喑ᑧᏓ倅喑ጒ㞧ᲮҠ                 ̷ᣒ㼓❴
                                               䩭䨣 VN喑ࣇᏓ   NN
                                                ̷ߕ㼓๡ 䩭䨣 VNȠ
                                              ̺䨵䧏ᑦㅔឬऄ䒰๔ࢸ߈
                                                ड़᫚ᠯ䧖
                                               ࣶ䧖㘪ᰶ᩵ᄳ⛁ノᄩڒव䬥
                                              Ѻ㒛喎




                                             ⛁͊ノ
                                            ោ㉘ใ㏬ ڤิᰶ॥⒛喑ᄬপ䪬
                                                                                             1%


                                                                       备注：所有铁附件热镀锌 80um 以上，不锈钢采用优
                                                                          质 304，精铸黄铜件及精铸铝青铜 2 种可选。
                                             ̸䲆㼓๡ ̺ज㻮  ܳ≮❴䩭䨣 VN
                                           ⩢≮䕇䌜̻䩭䨫䒡䨭̺Ⱕ䔋喎               Remarks:  All  iron  accessories  are  hot-dip
                   䌠㙞க                       㕠䒡 䩭䨣 VN                  galvanized over 80um, stainless steel is made
                  ᣽ӈᔘ䕌⮱〜䘕ܳ⻨喑               व䬥ᬣ䖬ٺጓठ᭰ߕ喑㇫⶛Ꮣ倅
                 ⩢㐳㐋㏬ᔘ䕌ᑦܧ                                              of high quality 304, precision cast brass and
                                                                       precision cast aluminum bronze.
                1 upper terminal (tinned copper casting and tin stamping)
                2. Upper cover (hot tin plating 80um, thickness 3mm)
                3. Upper contact piece (silver plated 3um, thickness 2.5mm)
                4. Upper moving contact (silver plated 3um, 304 stainless steel springs are subject to large pressure)
                5. Start-up hook (fork hook can effectively guide the fuse into the closing position)
                6. Fuse tube (anti-ultraviolet. It has moisture absorption and long life)
                7. The trunnion (silver plated 3um) avoids shaking left and right when closing, and the accuracy is high)
                8. Lower static contact (not visible) (the shunt plate silver plating current path is not connected to the plated chain pin)
                9. Jumper (provides fast end separation, cable strands pop up quickly)
                10. High-strength insulator (climbing distance 875mm) (self-cleaning ability, high strength, excellent craft)



         主要技术参数 /The main technical parameters

           项目 project                                                  RW12                      RW12
           额定电压 (kV)Rated voltage (kV)                                  35                        35
           额定电流 (A)Rated current (A)                                    100                      200
           额定频率 (Hz)Rated frequency (Hz)                                50                        50
           底座额定电流 (A)Base rated current (A)                             100                      200
           额定短路开断电流 (kA/A)Rated short-circuit breaking current (kA/A)  12.5/100、16/100      12.5/200、16/200
           工频耐压温试 (kV)Power frequency withstand voltage test (kV)      85/95                     85/95
           工频耐压干试 (kV)Power frequency withstand voltage dry test (kV)  90/95                     90/95
           额定雷电冲击电压 (kV)Rated lightning impulse voltage (kV)            170                      170
           爬电距离 (mm/kV)Creepage distance (mm/kV)                        875                      875
           机械寿命 ( 次 )Mechanical life (times)                            500                      500
           海拔高度 (mm)Altitude (mm)                                      1000                      1000
           环境温度 (℃ )Ambient temperature (℃ )                        -40℃ ~+70℃                -40℃ ~+70℃
           外形尺寸 (cm)Dimensions (cm)                                  68×38×16                  68×38×16
