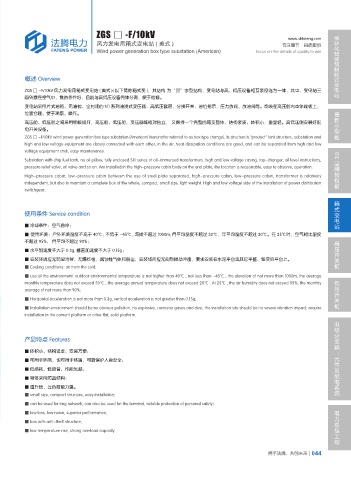

ZGS □ -F/10kV 模块化智能预制舱式变电站
www.shfateng.com
风力发电用箱式变电站 ( 美式 ) 专注细节 品质取胜
Wind power generation box type substation (American) Focus on the details of quality to win

概述 Overview

ZGS □ -F/10kV 风力发电用箱式变电站 ( 美式 )( 以下简称箱式变 )，其结构 为“品”字型结构，变电站与高、低压设备相互紧密连为一体，其中，变电站三
面外露在空气中，散热条件好，且能与高低压设备壳体分离，便于检修。
变电站采用片式油箱、无油枕、全封闭的 S11 系列油浸式变压器，高低压套管，分接开关，油位指示，压力放阀、放油阀等。均装在高压舱内本体端板上， 最新小型柜
位置合理、便于观察、操作。
高压舱、低压舱之间采用钢板隔开，高压舱、低压舱、变压器既相对独立， 又保持一个完整的箱变整体，结构紧凑、体积小，重量轻。高低压侧安装好配
电开关设备。
ZGS □ -F/10kV wind power generation box type substation (American) (hereinafter referred to as box type change), its structure is "product" font structure, substation and
high and low voltage equipment are closely connected with each other, In the air, heat dissipation conditions are good, and can be separated from high and low
voltage equipment shell, easy maintenance. GE
Substation with chip fuel tank, no oil pillow, fully enclosed S11 series of oil-immersed transformers, high and low voltage casing, tap-changer, oil level instructions, 品牌授权柜
pressure relief valve, oil valve and so on. Are installed in the high-pressure cabin body on the end plate, the location is reasonable, easy to observe, operation.
High-pressure cabin, low-pressure cabin between the use of steel plate separated, high-pressure cabin, low-pressure cabin, transformer is relatively
independent, but also to maintain a complete box of the whole, compact, small size, light weight. High and low voltage side of the installation of power distribution
switchgear.
箱式变电站

使用条件 Service condition

■ 冷却条件：空气自冷；
■ 使用环境：户外环境温度不高于 40℃ , 不低于 -45℃ , 海拔不超过 1000m, 月平均温度不超过 30℃，年平均温度不超过 20℃。在 25℃时，空气相比湿度
高压开关柜
不超过 95%， 月平均不超过 90%；
■ 水平加速度不大于 0.3g, 垂直加速度不大于 0.15g；
■ 安装环境应无明显污秽，无爆炸性，腐蚀性气体和粉尘，安装场所应无剧烈振动冲击，要求安装在水泥平台或其它平整、坚实的平台上。
■ Cooling conditions: air from the cold;
■ use of the environment: outdoor environmental temperature is not higher than 40℃ , not less than -45℃ , the elevation of not more than 1000m, the average 低压开关柜
monthly temperature does not exceed 30℃ , the average annual temperature does not exceed 20℃ . At 25℃ , the air humidity does not exceed 95%, the monthly
average of not more than 90%;
■ Horizontal acceleration is not more than 0.3g, vertical acceleration is not greater than 0.15g;
■ Installation environment should be no obvious pollution, no explosive, corrosive gases and dust, the installation site should be no severe vibration impact, require
installation in the cement platform or other flat, solid platform.
电缆分支箱、元件及配电系统

产品特点 Features

■ 体积小、结构紧凑、安装方便；
■ 可用于环网，也可用于终端，可靠保护人身安全；
■ 低损耗、低噪音、性能优越；
■ 箱体采用防盗结构；
■ 温升低，过负荷能力强。
■ small size, compact structure, easy installation;
■ can be used for ring network, can also be used for the terminal, reliable protection of personal safety；
电力总包工程
■ low loss, low noise, superior performance;
■ box with anti-theft structure;
■ low temperature rise, strong overload capacity.
