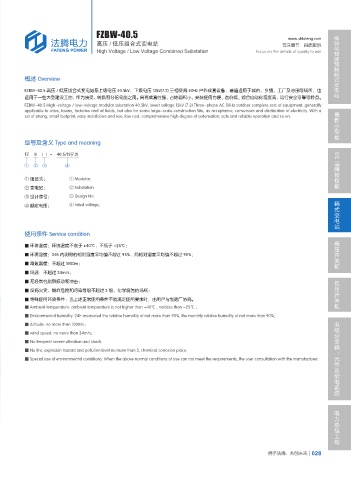

FZBW-40.5 模块化智能预制舱式变电站
www.shfateng.com
高压 / 低压组合式变电站 专注细节 品质取胜
High Voltage / Low Voltage Combined Substation Focus on the details of quality to win

概述 Overview

FZBW-40.5 高压 / 低压组合式变电站系上级电压 40.5kV，下级电压 12kV(7.2) 三相交流 50Hz 户外成套设备，普遍适用于城市、乡镇、工厂及油田等场所，也
适用于一些大型建设工地，作为接受、转换和分配电能之用。具有成套性强、占地面积小、安装使用方便、造价低、综合自动化程度高、运行安全可靠等特点。
FZBW-40.5 High-voltage / low-voltage modular substation 40.5kV, lower voltage 12kV (7.2) Three-phase AC 50Hz outdoor complete sets of equipment, generally
applicable to cities, towns, factories and oil fields, but also for some large-scale construction Site, as acceptance, conversion and distribution of electricity. With a 最新小型柜
set of strong, small footprint, easy installation and use, low cost, comprehensive high degree of automation, safe and reliable operation and so on.

型号及含义 Type and meaning

FZ B □ - 40.5/12(7.2) GE
品牌授权柜
① ② ③ ④

① 组合式； ① Modular;
② 变电站； ② Substation
③ 设计序号； ③ Design No. 箱式变电站
④ 额定电压； ④ rated voltage;

使用条件 Service condition
高压开关柜
■ 环境温度：环境温度不高于 +40℃，不低于 -25℃；
■ 环境湿度：24h 内测得的相对湿度平均值不超过 95%，月相对湿度平均值不超过 90%；
■ 海拔高度：不超过 1000m；
■ 风速：不超过 34m/s；
低压开关柜
■ 无经常性剧烈振动和冲击；
■ 没有火灾、爆炸危险和污染等级不超过 3 级、化学腐蚀的场所；
■ 特殊使用环境条件：当上述正常使用条件不能满足使用要求时，由用户与制造厂协商。
■ Ambient temperature: ambient temperature is not higher than +40℃ , not less than -25℃ ;
■ Environmental humidity: 24h measured the relative humidity of not more than 95%, the monthly relative humidity of not more than 90%;
电缆分支箱、元件及配电系统
■ Altitude: no more than 1000m ;
■ wind speed: no more than 34m/s;
■ No frequent severe vibration and shock:
■ No fire, explosion hazard and pollution level no more than 3, chemical corrosion place.
■ Special use of environmental conditions: When the above normal conditions of use can not meet the requirements, the user consultation with the manufacturer.
