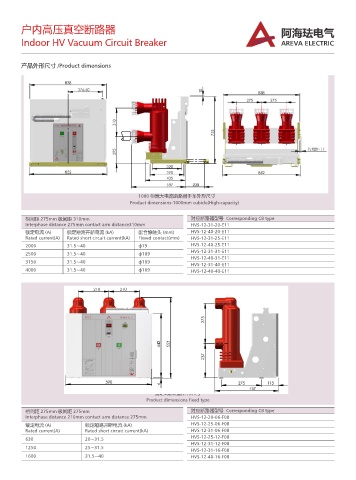

产品外形尺寸 /Product dimensions

1000 柜宽大电流断路器手车外形尺寸
Product dimensions-1000mm cubicle(High-capacity)

相间距 275mm 极间距 310mm 对应断路器型号 Corresponding CB type
Interphase distance 275mm contact arm distance310mm HVS-12-31-20-E11
额定电流 (A) 额定短路开断电流 (kA) 配合静触头 (mm) HVS-12-40-20-E11
Rated current(A) Rated short circuit current(kA) Fixxed contact(mm) HVS-12-31-25-E11
2000 31.5~40 ф79 HVS-12-40-25-E11
2500 31.5~40 ф109 HVS-12-31-31-E11
HVS-12-40-31-E11
3150 31.5~40 ф109
HVS-12-31-40-E11
4000 31.5~40 ф109 HVS-12-40-40-E11

固定式断路器外形尺寸
Product dimensions fixed type

相间距 275mm 极间距 275mm 对应断路器型号 Corresponding CB type
Interphase distance 210mm contact arm distance 275mm HVS-12-20-06-F08
额定电流 (A) 额定短路开断电流 (kA) HVS-12-25-06-F08
Rated current(A) Rated short circuit current(kA) HVS-12-31-06-F08
630 20~31.5 HVS-12-25-12-F08
HVS-12-31-12-F08
1250 25~31.5
HVS-12-31-16-F08
1600 31.5~40 HVS-12-40-16-F08
