户内高压真空断路器 ୚ࡢ䚕ࣔࠩ

Indoor HV Vacuum Circuit Breaker AREVA ELECTRIC

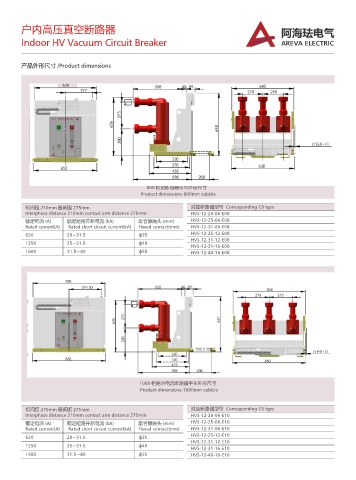

产品外形尺寸 /Product dimensions

638

800 柜宽断路器手车外形尺寸
Product dimensions-800mm cubicle

相间距 210mm 极间距 275mm 对应断路器型号 Corresponding CB type
Interphase distance 210mm contact arm distance 275mm HVS-12-20-06-E08
额定电流 (A) 额定短路开断电流 (kA) 配合静触头 (mm) HVS-12-25-06-E08
Rated current(A) Rated short circuit current(kA) Fixxed contact(mm) HVS-12-31-06-E08
630 20~31.5 ф35 HVS-12-25-12-E08
HVS-12-31-12-E08
1250 25~31.5 ф49
HVS-12-31-16-E08
1600 31.5~40 ф55 HVS-12-40-16-E08

1000 柜宽小电流断路器手车外形尺寸
Product dimensions-1000mm cubicle

相间距 275mm 极间距 275mm 对应断路器型号 Corresponding CB type
Interphase distance 210mm contact arm distance 275mm HVS-12-20-06-E10
额定电流 (A) 额定短路开断电流 (kA) 配合静触头 (mm) HVS-12-25-06-E10
Rated current(A) Rated short circuit current(kA) Fixxed contact(mm) HVS-12-31-06-E10
630 20~31.5 ф35 HVS-12-25-12-E10
HVS-12-31-12-E10
1250 25~31.5 ф49 HVS-12-31-16-E10
1600 31.5~40 ф55 HVS-12-40-16-E10
