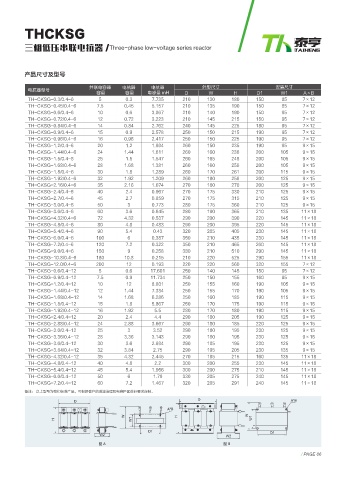

THCKSG

三相低压串联电抗器 / Three-phase low-voltage series reactor

产品尺寸及型号

并联电容器 电抗器 电抗器 外形尺寸 安装尺寸
电抗器型号
容量 容量 电感量 mH D W H D1 W1 A×B
TH-CKSG-0.3/0.4-6 5 0.3 7.735 210 130 180 150 85 7×12
TH-CKSG-0.45/0.4-6 7.5 0.45 5.157 210 135 190 150 85 7×12
TH-CKSG-0.6/0.4-6 10 0.6 3.867 210 140 190 150 95 7×12
TH-CKSG-0.72/0.4-6 12 0.72 3.223 210 145 215 150 95 7×12
TH-CKSG-0.84/0.4-6 14 0.84 2.762 240 145 225 180 95 7×12
TH-CKSG-0.9/0.4-6 15 0.9 2.578 250 150 215 190 95 7×12
TH-CKSG-0.96/0.4-6 16 0.96 2.417 250 150 225 190 95 7×12
TH-CKSG-1.2/0.4-6 20 1.2 1.934 260 150 235 190 95 9×15
TH-CKSG-1.44/0.4-6 24 1.44 1.611 260 160 236 200 105 9×15
TH-CKSG-1.5/0.4-6 25 1.5 1.547 260 165 246 200 105 9×15
TH-CKSG-1.68/0.4-6 28 1.68 1.381 260 160 256 200 105 9×15
TH-CKSG-1.8/0.4-6 30 1.8 1.289 260 170 261 200 115 9×15
TH-CKSG-1.92/0.4-6 32 1.92 1.209 260 180 256 200 125 9×15
TH-CKSG-2.16/0.4-6 35 2.16 1.074 270 180 270 200 125 9×15
TH-CKSG-2.4/0.4-6 40 2.4 0.967 270 175 330 210 125 9×15
TH-CKSG-2.7/0.4-6 45 2.7 0.859 270 175 315 210 125 9×15
TH-CKSG-3.0/0.4-6 50 3 0.773 280 175 360 210 125 9×15
TH-CKSG-3.6/0.4-6 60 3.6 0.645 280 190 365 210 135 11×18
TH-CKSG-4.32/0.4-6 72 4.32 0.537 290 200 390 220 145 11×18
TH-CKSG-4.8/0.4-6 80 4.8 0.483 290 200 395 220 145 11×18
TH-CKSG-5.4/0.4-6 90 5.4 0.43 320 205 405 230 145 11×18
TH-CKSG-6.0/0.4-6 100 6 0.387 350 210 435 230 145 11×18
TH-CKSG-7.2/0.4-6 120 7.2 0.322 350 210 465 260 145 11×18
TH-CKSG-9.0/0.4-6 150 9 0.258 380 210 510 290 145 11×18
TH-CKSG-10.8/0.4-6 180 10.8 0.215 210 220 525 290 155 11×18
TH-CKSG-12.0/0.4-6 200 12 0.193 220 220 560 320 155 7×12
TH-CKSG-0.6/0.4-12 5 0.6 17.601 250 140 145 150 95 7×12
TH-CKSG-0.9/0.4-12 7.5 0.9 11.734 250 150 155 160 95 9×15
TH-CKSG-1.2/0.4-12 10 12 8.801 250 155 160 190 105 9×15
TH-CKSG-1.44/0.4-12 12 1.44 7.334 250 155 170 190 105 9×15
TH-CKSG-1.68/0.4-12 14 1.68 6.286 250 160 185 190 115 9×15
TH-CKSG-1.8/0.4-12 15 1.8 5.867 250 170 175 190 115 9×15
TH-CKSG-1.92/0.4-12 16 1.92 5.5 280 170 180 190 115 9×15
TH-CKSG-2.4/0.4-12 20 2.4 4.4 290 180 205 190 125 9×15
TH-CKSG-2.88/0.4-12 24 2.88 3.667 290 180 185 220 125 9×15
TH-CKSG-3.0/0.4-12 25 3 3.52 290 180 195 230 125 9×15
TH-CKSG-3.36/0.4-12 28 3.36 3.143 290 180 195 230 125 9×15
TH-CKSG-3.6/0.4-12 30 3.6 2.934 290 185 195 230 125 9×15
TH-CKSG-3.84/0.4-12 32 3.84 2.75 290 195 205 230 135 9×15
TH-CKSG-4.32/0.4-12 35 4.32 2.445 270 195 215 160 135 11×18
TH-CKSG-4.8/0.4-12 40 4.8 2.2 300 200 255 230 145 11×18
TH-CKSG-5.4/0.4-12 45 5.4 1.956 300 200 275 210 145 11×18
TH-CKSG-6.0/0.4-12 50 6 1.76 330 205 275 240 145 11×18
TH-CKSG-7.2/0.4-12 60 7.2 1.467 320 205 291 240 145 11×18
备注： 以上型号为我们标准产品，可根据客户的谐波治理和电容匹配进行要求定制。
D A*B
D
A*B
W H W
H W1 W1
D1
W2 W2 D1
֣ ' ֣ (
