THCKSC

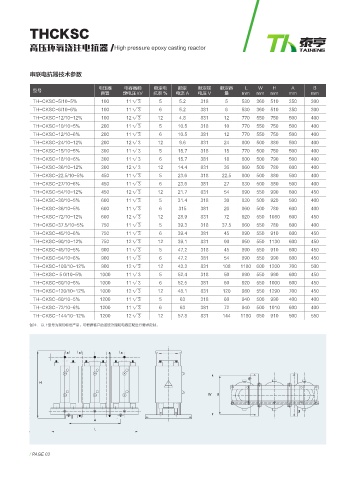

高压环氧浇注电抗器 / High pressure epoxy casting reactor

串联电抗器技术参数

电压器 电容器额 额定电 额定 额定端 额定容 L W H A B
型号
容置 定电压 kV 抗率 % 电流 A 电压 V 量 mm mm mm mm mm
TH-CKSC-5/10-5% 100 11 √ 3 5 5.2 318 5 530 360 510 350 300
TH-CKSC-6/10-6% 100 11 √ 3 6 5.2 381 6 530 360 510 350 300
TH-CKSC-12/10-12% 100 12 √ 3 12 4.8 831 12 770 550 750 500 400
TH-CKSC-10/10-5% 200 11 √ 3 5 10.5 318 10 770 550 750 500 400
TH-CKSC-12/10-6% 200 11 √ 3 6 10.5 381 12 770 550 750 500 400
TH-CKSC-24/10-12% 200 12 √ 3 12 9.6 831 24 800 500 880 500 400
TH-CKSC-15/10-5% 300 11 √ 3 5 15.7 318 15 770 500 750 500 400
TH-CKSC-18/10-6% 300 11 √ 3 6 15.7 381 18 800 500 790 500 400
TH-CKSC-36/10-12% 300 12 √ 3 12 14.4 831 36 860 500 780 600 400
TH-CKSC-22.5/10-5% 450 11 √ 3 5 23.6 318 22.5 800 500 880 500 400
TH-CKSC-27/10-6% 450 11 √ 3 6 23.6 381 27 830 500 880 500 400
TH-CKSC-54/10-12% 450 12 √ 3 12 21.7 831 54 890 550 990 600 450
TH-CKSC-30/10-5% 600 11 √ 3 5 31.4 318 30 830 500 920 500 400
TH-CKSC-36/10-5% 600 11 √ 3 6 315 381 26 860 500 780 600 400
TH-CKSC-72/10-12% 600 12 √ 3 12 28.9 831 72 920 550 1080 600 450
TH-CKSC-37.5/10-5% 750 11 √ 3 5 39.3 318 37.5 860 550 780 600 400
TH-CKSC-45/10-6% 750 11 √ 3 6 39.4 381 45 890 550 910 600 450
TH-CKSC-90/10-12% 750 12 √ 3 12 39.1 831 90 950 550 1130 600 450
TH-CKSC-45/10-5% 900 11 √ 3 5 47.2 318 45 890 550 910 600 450
TH-CKSC-54/10-6% 900 11 √ 3 6 47.2 381 54 890 550 990 600 450
TH-CKSC-108/10-12% 900 12 √ 3 12 43.3 831 108 1180 600 1200 700 500
TH-CKSC- 5 0/10-5% 1000 11 √ 3 5 52.4 318 50 890 550 990 600 450
TH-CKSC-60/10-6% 1000 11 √ 3 6 52.5 381 60 920 550 1000 600 450
TH-CKSC-120/10-12% 1000 12 √ 3 12 48.1 831 120 980 550 1290 700 450
TH-CKSC-60/10-5% 1200 11 √ 3 5 63 318 60 940 500 990 400 400
TH-CKSC-72/10-6% 1200 11 √ 3 6 63 381 72 940 500 1010 600 400
TH-CKSC-144/10-12% 1200 12 √ 3 12 57.8 831 144 1180 650 910 500 550
备注： 以上型号为我们标准产品，可根据客户的谐波治理和电容匹配进行要求定制。

.
= (

'
2

/ PAGE 03
