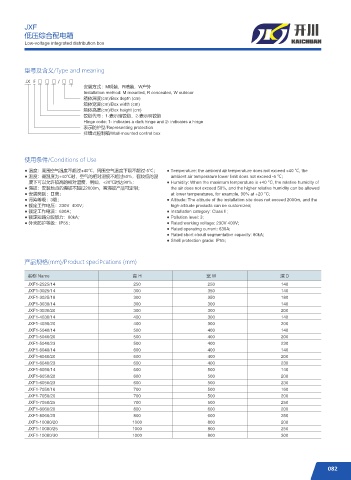

JXF
低压综合配电箱
Low-voltage integrated distribution box

型号及含义/Type and meaning

JX F □ □ □ / □ □
安装方式：M明装，R暗装，W户外
Installation method: M mounted, R concealed, W outdoor
箱体深度(cm)/Box depth (cm)
箱体宽度(cm)/Box width (cm)
箱体高度(cm)/Box height (cm)
铰链代号：1-表示暗铰链、2-表示明铰链
Hinge code: 1- indicates a dark hinge and 2- indicates a hinge
表示防护型/Representing protection
挂墙式控制箱/Wall-mounted control box

使用条件/Conditions of Use
● 温度：周围空气温度不超过+40℃，周围空气温度下限不超过-5℃； ● Temperature: the ambient air temperature does not exceed +40 ℃, the
● 湿度：最温度为+40℃时，空气的相对湿度不超过50%，在较低的温 ambient air temperature lower limit does not exceed -5 ℃;
度下可以允许较高的相对湿度，例如，+20℃时达90%； ● Humidity: When the maximum temperature is +40 °C, the relative humidity of
● 海拔：安装地点的海拔不超过2000m，高海拔产品可定制； the air does not exceed 50%, and the higher relative humidity can be allowed
● 安装类别：Ⅱ类； at lower temperatures, for example, 90% at +20 °C;
● 污染等级：3级； ● Altitude: The altitude of the installation site does not exceed 2000m, and the
● 额定工作电压：230V 400V； high-altitude products can be customized;
● 额定工作电流：630A； ● Installation category: Class II;
● 额定短路分段能力：80kA； ● Pollution level: 3;
● 外壳防护等级：IP55； ● Rated working voltage: 230V 400V;
● Rated operating current: 630A;
● Rated short circuit segmentation capacity: 80kA;
● Shell protection grade: IP55;

产品规格(mm)/Product specifications (mm)

名称 Name 高 H 宽 W 深 D
JXF1-2525/14 250 250 140
JXF1-3025/14 300 350 140
JXF1-3025/18 300 350 180
JXF1-3030/14 300 300 140
JXF1-3030/20 300 300 200
JXF1-4030/14 400 300 140
JXF1-4030/20 400 300 200
JXF1-5040/14 500 400 140
JXF1-5040/20 500 400 200
JXF1-5040/23 500 400 230
JXF1-6040/14 600 400 140
JXF1-6040/20 600 400 200
JXF1-6040/23 600 400 230
JXF1-6050/14 600 500 140
JXF1-6050/20 600 500 200
JXF1-6050/23 600 500 230
JXF1-7050/16 700 500 160
JXF1-7050/20 700 500 200
JXF1-7050/25 700 500 250
JXF1-8060/20 800 600 200
JXF1-8060/25 800 600 250
JXF1-10080/20 1000 800 200
JXF1-10080/25 1000 800 250
JXF1-10080/30 1000 800 300

082
