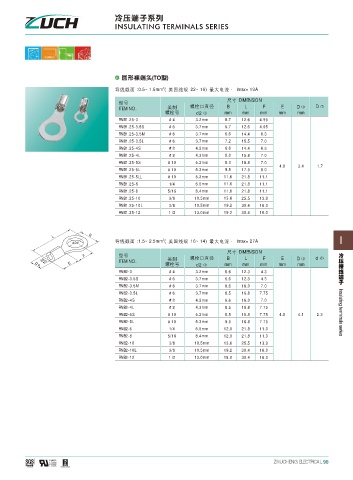

INSULATING TERMINALS SERIES INSULATING TERMINALS SERIES

> >
2
2
:2.5~4mm ( 14~12) Imax=37A :0.5~1.5mm ( 22~16) Imax=19A
DIMENSION DIMENSION
B L F H D B L F E D D
ITEM NO . Color ITEM NO .
d2 mm mm mm mm mm d2 mm mm mm mm mm
RV3.5-4 #8 4.3mm 8.0 24.5 7.7 RNB1.25-3 #4 3.2mm 5.7 12.6 4.95
RV3.5-5S #10 5.3mm 8.0 24.5 7.7 RNB1.25-3.5S #6 3.7mm 5.7 12.6 4.95
RV3.5-5M #10 5.3mm 9.5 25.5 8.3 RNB1.25-3.5M #6 3.7mm 6.6 14.4 6.3
RV3.5-5L #10 5.3mm 12.0 27.9 7.7 12.5 6.2 RNB1.25-3.5L #6 3.7mm 7.2 15.5 7.0
black
RV3.5-6 1 /4 6.5mm 12.0 27.9 7.7 RNB1.25-4S #8 4.3mm 6.6 14.4 6.3
RV3.5-8 5/16 8.4mm 15.0 32.0 13.5 RNB1.25-4L #8 4.3mm 8.0 15.8 7.0
RV3.5-10 3/8 10.5mm 15.0 32.0 13.5 RNB1.25-5S #10 5.3mm 8.0 15.8 7.0
4.8 3.4 1.7
RNB1.25-5L #10 5.3mm 9.5 17.5 8.0
RNB1.25-5LL #10 5.3mm 11.6 21.8 11.1
RNB1.25-6 1 /4 6.5mm 11.6 21.8 11.1
2
:4~6mm ( 12~10) Imax=48A RNB1.25-8 5/16 8.4mm 11.6 21.8 11.1
RNB1.25-10 3/8 10.5mm 13.6 25.5 13.9
DIMENSION
B L F H D RNB1.25-10L 3/8 10.5mm 19.2 30.4 16.0
ITEM NO . Color
d2 mm mm mm mm mm RNB1.25-12 1 /2 13.0mm 19.2 30.4 16.0
RV5.5-3.5 #6 3.7mm 7.2 21.4 5.9
RV5.5-4S #8 4.3mm 7.2 21.4 5.9
RV5.5-4L #8 4.3mm 9.5 25.5 8.3 L B
I RV5.5-5 #10 5.3mm 9.5 25.5 8.3 d2 :1.5~2.5mm ( 16~14) Imax=27A I
2
RV5.5-6 1 /4 6.5mm 12.0 28.8 12.0 12.5 6.7 yellow
DIMENSION
RV5.5-8 5/16 8.4mm 15.0 33.7 13.7 F
d B L F E D d
RV5.5-10 3/8 10.5mm 15.0 33.7 13.7 D E ITEM NO . mm mm mm mm mm
B d2
RV5.5-12 1 /2 13.0mm 19.2 38.1 16.0 RNB2-3 #4 3.2mm 6.6 12.3 4.3
L
d2 RNB2-3.5S #6 3.7mm 6.6 12.3 4.3
RNB2-3.5M #6 3.7mm 6.6 16.0 7.0
F
DIMENSION RNB2-3.5L #6 3.7mm 8.5 16.8 7.75
H B L F E RNB2-4S #8 4.3mm 6.6 16.0 7.0
D D
ITEM NO . COLOR
D2 mm mm mm mm mm RNB2-4L #8 4.3mm 8.5 16.8 7.75
RV8-5 5.3 10.8 31 9 RNB2-5S #10 5.3mm 8.5 16.8 7.75 4.8 4.1 2.3 Insulating terminals series
RV8-6 6.5 10.8 31 9 RNB2-5L #10 5.3mm 9.5 16.8 7.75
RV8-8 8.5 14.8 38 13.5
RNB2-6 1 /4 6.5mm 12.0 21.8 11.0
RV8-4 4.3 8.8 31 9.3
RNB2-8 5/16 8.4mm 12.0 21.8 11.0
Insulating terminals series
RV8-5S 5.5 8.8 31 9.3
RV8-5M 5.5 12.0 32.3 9.3 16 9.5 red RNB2-10 3/8 10.5mm 13.6 25.5 13.9
RV8-6S 6.5 12.0 32.3 9.3 RNB2-10L 3/8 10.5mm 19.2 30.4 16.0
RV8-6L 6.5 15.0 38.3 13.8 RNB2-12 1 /2 13.0mm 18.0 30.4 16.0
RV8-8 8.5 15.0 38.3 13.8
RV8-10 10.5 15.0 38.3 13.8
RV8-12 12.5 22.0 48 17.0
