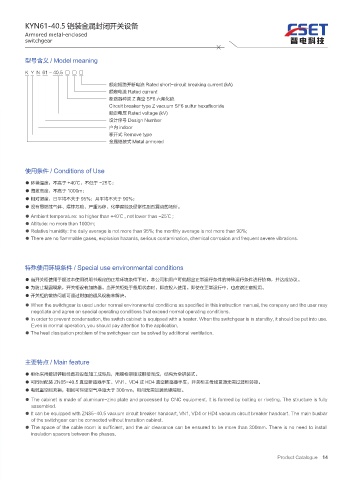

KYN61-40.5 铠装金属封闭开关设备
Armored metal-enclosed
switchgear

型号含义 / Model meaning

K Y N 61 - 40.5 □ □ □
额定短路开断电流 Rated short-circuit breaking current (kA)
额定电流 Rated current
断路器种类 Z 真空 SF6 六氟化硫
Circuit breaker type Z vacuum SF6 sulfur hexafluoride
额定电压 Rated voltage (kV)
设计序号 Design Number
户内 indoor
移开式 Remove type
金属铠装式 Metal armored

使用条件 / Conditions of Use

● 环境温度：不高于 +40℃，不低于 -25℃；
● 海拔高度：不高于 1000m；
● 相对湿度：日平均不大于 95％；月平均不大于 90％；
● 没有易燃性气体、爆炸危险、严重污秽、化学腐蚀及经常性剧烈震动的场所。
● Ambient temperature: no higher than +40℃ , not lower than -25℃ ;
● Altitude: no more than 1000m;
● Relative humidity: the daily average is not more than 95%; the monthly average is not more than 90%;
● There are no flammable gases, explosion hazards, serious contamination, chemical corrosion and frequent severe vibrations.

特殊使用环境条件 / Special use environmental conditions
● 当开关柜使用于超过本使用说明书规定的正常环境条件下时，本公司和用户可就超出正常运行条件的特殊运行条件进行协商，并达成协议。
● 为防止凝露现象，开关柜设有加热器。当开关柜处于备用状态时，即应投入使用。即使在正常运行中，也应该注意投用。
● 开关柜的散热问题可通过附加的通风设施来解决。
● When the switchgear is used under normal environmental conditions as specified in this instruction manual, the company and the user may
negotiate and agree on special operating conditions that exceed normal operating conditions.
● In order to prevent condensation, the switch cabinet is equipped with a heater. When the switchgear is in standby, it should be put into use.
Even in normal operation, you should pay attention to the application.
● The heat dissipation problem of the switchgear can be solved by additional ventilation.

主要特点 / Main feature
● 柜体采用敷铝锌板经数控设备加工成型后，用螺栓拼接或铆接而成，结构为全拼装式。
● 可同时配装 ZN85-40.5 真空断路器手车、VN1、VD4 或 HD4 真空断路器手车，开关柜主母线贯通无需过渡柜转接。
● 电缆室空间充裕，相间可保证空气净距大于 300mm，相间无需加装绝缘隔板。
● The cabinet is made of aluminum-zinc plate and processed by CNC equipment. It is formed by bolting or riveting. The structure is fully
assembled.
● It can be equipped with ZN85-40.5 vacuum circuit breaker handcart, VN1, VD4 or HD4 vacuum circuit breaker handcart. The main busbar
of the switchgear can be connected without transition cabinet.
● The space of the cable room is sufficient, and the air clearance can be ensured to be more than 300mm. There is no need to install
insulation spacers between the phases.

Product Catalogue 14
