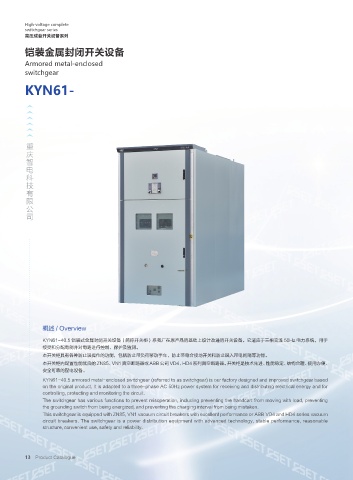

Page 20 - 重庆智电科技有限公司

High-voltage complete
switchgear series
高压成套开关设备系列

铠装金属封闭开关设备
Armored metal-enclosed
switchgear

KYN61-

司 智 电 重 庆 科 限 公 技 有

概述 / Overview

KYN61-40.5 铠装式金属封闭开关设备（简称开关柜）系我厂在原产品的基础上设计改进的开关设备。它适应于三相交流 50Hz 电力系统，用于
接受和分配电能并对电路进行控制、保护及监测。
本开关柜具有各种防止误操作的功能，包括防止带负荷移动手车，防止带电合接地开关和防止误入带电间隔等功能。
本开关柜内配置性能优良的 ZN85、VN1 真空断路器或 ABB 公司 VD4、HD4 系列真空断路器。开关柜是技术先进、性能稳定、结构合理、使用方便、
安全可靠的配电设备。
KYN61-40.5 armored metal-enclosed switchgear (referred to as switchgear) is our factory designed and improved switchgear based
on the original product. It is adapted to a three-phase AC 50Hz power system for receiving and distributing electrical energy and for
controlling, protecting and monitoring the circuit.
The switchgear has various functions to prevent misoperation, including preventing the handcart from moving with load, preventing
the grounding switch from being energized, and preventing the charging interval from being mistaken.
This switchgear is equipped with ZN85, VN1 vacuum circuit breakers with excellent performance or ABB VD4 and HD4 series vacuum
circuit breakers. The switchgear is a power distribution equipment with advanced technology, stable performance, reasonable
structure, convenient use, safety and reliability.

...................................................................................................
