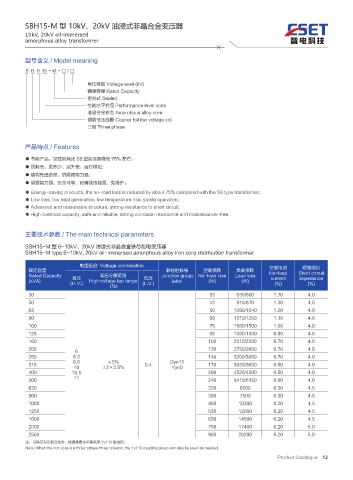

SBH15-M 型 10kV、20kV 油浸式非晶合金变压器
10kV, 20kV oil-immersed
amorphous alloy transformer

型号含义 / Model meaning
S B H 15 - M - □ / □

电压等级 Voltage level (kV)
额定容量 Rated Capacity
密封式 Sealed
性能水平代号 Performance level code
非晶合金铁芯 Amorphous alloy core
铜箔低压线圈 Copper foil low voltage coil
三相 Three phase

产品特点 / Features

● 节能产品，空载损耗比 S9 型变压器降低 75% 左右；
● 损耗低、发热少、温升低，运行稳定；
● 结构先进合理、抗短路能力强；
● 超载能力强、安全可靠、耐腐蚀性能强，免维护。
● Energy-saving products, the no-load loss is reduced by about 75% compared with the S9 type transformer;
● Low loss, low heat generation, low temperature rise, stable operation;
● Advanced and reasonable structure, strong resistance to short circuit;
● High overload capacity, safe and reliable, strong corrosion resistance and maintenance-free.

主要技术参数 / The main technical parameters
SBH15-M 型 6~10kV、20kV 油浸式非晶合金铁芯配电变压器
SBH15-M type 6~10kV, 20kV oil-immersed amorphous alloy iron core distribution transformer
电压组合 Voltage combination 空载电流 短路阻抗
额定容量 联结组标号 空载损耗 负载损耗 No-load Short circuit
Rated Capacity 高压 高压分接范围 低压 Junction group No-load loss Load loss current impedance
(kVA) High voltage tap range label (W) (W)
(H.V.) (L.V.) (%) (%)
(％)
30 33 630/600 1.70 4.0
50 43 910/870 1.30 4.0
63 50 1090/1040 1.20 4.0
80 60 1310/1250 1.10 4.0
100 75 1580/1500 1.00 4.0
125 85 1890/1800 0.90 4.0
160 100 2310/2200 0.70 4.0
200 120 2730/2600 0.70 4.0
6
250 6.3 140 3200/3050 0.70 4.0
6.6 ±5% Dyn11
315 0.4 170 3830/3650 0.50 4.0
10 ±2×2.5% Yyn0
400 10.5 200 4520/4300 0.50 4.0
11
500 240 5410/5150 0.50 4.0
630 320 6200 0.30 4.5
800 380 7500 0.30 4.5
1000 450 10300 0.20 4.5
1250 530 12000 0.20 4.5
1600 630 14500 0.20 4.5
2000 750 17400 0.20 5.0
2500 900 20200 0.20 5.0
注：当铁芯为三相三柱时，根据需要也可需采用 Yy110 联结组。
Note: When the iron core is a three-phase three-column, the Yy110 coupling group can also be used as needed.
Product Catalogue 12
