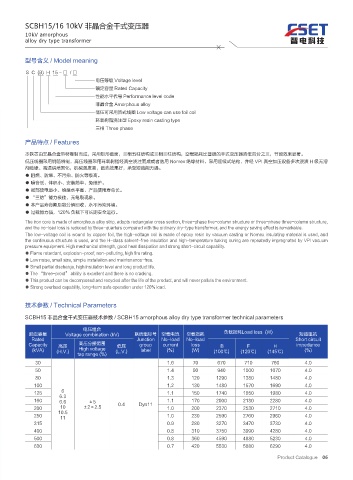

SCBH15/16 10kV 非晶合金干式变压器
          10kV amorphous
          alloy dry type transformer


          型号含义 / Model meaning

          S  C  (B)  H  15 - □  / □
                                 电压等级 Voltage level
                                 额定容量 Rated Capacity
                                 性能水平代号 Performance level code
                                 非晶合金 Amorphous alloy
                                 低压可采用箔式线圈 Low voltage can use foil coil
                                 环氧树脂浇注型 Epoxy resin casting type
                                 三相 Three phase

          产品特点 / Features

          本铁芯由非晶合金带材卷制而成,采用矩形截面,三相五柱结构或三相三柱结构,空载损耗比普通的干式变压器降低四分之三,节能效果显著。
          低压线圈采用铜箔绕制,高压线圈采用环氧树脂经真空浇注而成或者选用 Nomex 绝缘材料,采用连续式结构,并经 VPI 真空加压设备多次浸渍 H 级无溶
          剂绝缘、高温烘焙固化,机械强度高,散热效果好,承受短路能力强。
          ● 阻燃、防爆、不污染、防火等级高。
          ● 噪音低、体积小、安装简单、免维护。
          ● 局部放电量小、绝缘水平高、产品使用寿命长。
          ● “三防”能力极佳,无龟裂现象。
          ● 本产品寿命期后能分解回收,永不污染环境。
          ● 过载能力强,120% 负载下可长期安全运行。
          The iron core is made of amorphous alloy strip, adopts rectangular cross section, three-phase five-column structure or three-phase three-column structure,
          and the no-load loss is reduced by three-quarters compared with the ordinary dry-type transformer, and the energy saving effect is remarkable.
          The low-voltage coil is wound by copper foil, the high-voltage coil is made of epoxy resin by vacuum casting or Nomex insulating material is used, and
          the continuous structure is used, and the H-class solvent-free insulation and high-temperature baking curing are repeatedly impregnated by VPI vacuum
          pressure equipment. High mechanical strength, good heat dissipation and strong short-circuit capability.
          ● Flame retardant, explosion-proof, non-polluting, high fire rating.
          ● Low noise, small size, simple installation and maintenance-free.
          ● Small partial discharge, high insulation level and long product life.
          ● The “three-proof” ability is excellent and there is no cracking.
          ● This product can be decomposed and recycled after the life of the product, and will never pollute the environment.
          ● Strong overload capability, long-term safe operation under 120% load.


          技术参数 / Technical Parameters
         SCBH15 非晶合金干式变压器技术参数 / SCBH15 amorphous alloy dry type transformer technical parameters

                             电压组合
           额定容量        Voltage combination (kV)    联结组标号  空载电流  空载损耗         负载损耗Load loss  (W)       短路阻抗
            Rated                              Junction   No-load   No-load                          Short circuit
           Capacity  高压     高压分接范围      低压      group   current  loss       B       F        H       impedance
            (kVA)   (H.V.)  High voltage   (L.V.)  label  (%)     (W)    (100℃)   (120℃)   (145℃)       (%)
                           tap range (%)
             30                                          1.6      70      670      710       760        4.0
             50                                          1.4      90      940      1000     1070        4.0
             80                                          1.3      120     1290     1380     1480        4.0
            100                                          1.2      130     1480     1570     1690        4.0
            125       6                                  1.1      150     1740     1850     1980        4.0
                     6.3
            160      6.6       ±5        0.4    Dyn11    1.1      170     2000     2130     2280        4.0
            200      10      ±2×2.5                      1.0      200     2370     2530     2710        4.0
                     10.5
            250                                          1.0      230     2590     2760     2960        4.0
                     11
            315                                          0.9      280     3270     3470     3730        4.0
            400                                          0.8      310     3750     3990     4280        4.0
            500                                          0.8      360     4590     4880     5230        4.0
            630                                          0.7      420     5530     5880     6290        4.0
