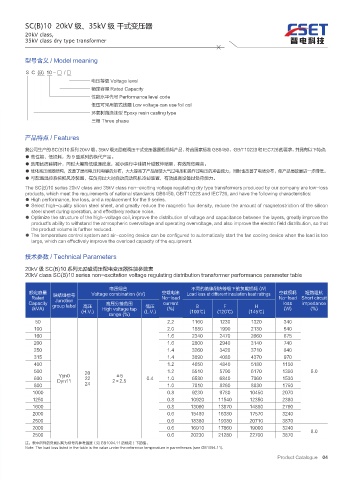

SC(B)10  20kV 级、35kV 级 干式变压器
          20kV class,
          35kV class dry type transformer


          型号含义 / Model meaning

          S  C  (B)  10 - □  / □
                                电压等级 Voltage level
                                额定容量 Rated Capacity
                                性能水平代号 Performance level code
                                低压可采用箔式线圈 Low voltage can use foil coil
                                环氧树脂浇注型 Epoxy resin casting type
                                三相 Three phase

          产品特点 / Features

          我公司生产的 SC(B)10 系列 20kV 级、35kV 级无励磁调压干式变压器属低损耗产品,符合国家标准 GB6450、 GB/T10228 和 IEC726 的要求,并具有以下特点:
          ● 高性能、低损耗,为 9 型系列的换代产品。
          ● 选用优质硅钢片,同时大幅降低磁通密度,减小运行中硅钢片磁致伸缩量,有效降低噪音。
          ● 优化高压线圈结构,改善了层间电压和电容的分布,大大提高了产品耐受大气过电压和操作过电压的冲击能力,同时也改善了电场分布,使产品局放量进一步降低。
          ● 可配置温控系统和风冷装置,在负荷过大时自动启动风机冷却装置,有效提高设备过负荷能力。
          The SC(B)10 series 20kV class and 35kV class non-exciting voltage regulating dry type transformers produced by our company are low-loss
          products, which meet the requirements of national standards GB6450, GB/T10228 and IEC726, and have the following characteristics:
          ● High performance, low loss, and a replacement for the 9 series.
          ● Select high-quality silicon steel sheet, and greatly reduce the magnetic flux density, reduce the amount of magnetostriction of the silicon
            steel sheet during operation, and effectively reduce noise.
          ● Optimize the structure of the high-voltage coil, improve the distribution of voltage and capacitance between the layers, greatly improve the
            product's ability to withstand the atmospheric overvoltage and operating overvoltage, and also improve the electric field distribution, so that
            the product volume is further reduced.
          ● The temperature control system and air-cooling device can be configured to automatically start the fan cooling device when the load is too
            large, which can effectively improve the overload capacity of the equipment.

          技术参数 / Technical Parameters

          20kV 级 SC(B)10 系列无励磁调压配电变压器性能参数表
          20kV class SC(B)10 series non-excitation voltage regulating distribution transformer performance parameter table

                                      电压组合                        不同的绝缘耐热等级下的负载损耗 (W)
           额定容量    联结组标号        Voltage combination (kV)    空载电流  Load loss at different insulation heat ratings   空载损耗  短路阻抗
            Rated   Junction                            No-load                                No-load  Short circuit
           Capacity  group label     高压分接范围             current                                  loss  impedance
            (kVA)            高压    High voltage tap   低压  (%)      B        F          H         (W)      (%)
                            (H.V.)                (L.V.)         (100℃)   (120℃)     (145℃)
                                      range (%)
             50                                          2.2      1160     1230       1320       340
            100                                          2.0      1880     1990       2130       540
            160                                          1.6      2340     2470       2660       675
            200                                          1.6      2800     2940       3140       740
            250                                          1.4      3260     3420       3710       840
            315                                          1.4      3890     4080       4370       970
            400                                          1.2      4650     4840       5180      1150
            500               20                         1.2      5510     5790       6170      1350      6.0
                     Yyn0               ±5
            630               22                  0.4    1.0      6530     6840       7360      1530
                    Dyn11              2×2.5
            800               24                         1.0      7810     8260       8830      1750
            1000                                         0.8      9230     9780      10450      2070
            1250                                         0.8     10920     11540     12350      2380
            1600                                         0.8     13090     13870     14860      2790
            2000                                         0.6     15480     16380     17570      3240
            2500                                         0.6     18380     19380     20710      3870
            2000                                         0.6     16910     17860     19000      3240
                                                                                                          8.0
            2500                                         0.6     20230     21280     22700      3870
          注:表中所列的负载损耗为括号内参考温度(见 GB1094.11 的规定)下的值。
          Note: The load loss listed in the table is the value under the reference temperature in parentheses (see GB1094.11).
