JSYD 防火桥架
Fire bridge

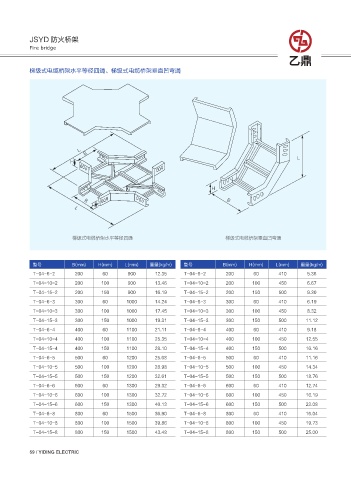

梯级式电缆桥架水平等径四通、梯级式电缆桥架垂直凹弯通

-
#
-
)

)

# #
)
-

梯级式电缆桥架水平等径四通 梯级式电缆桥架垂直凹弯通

型号 B(mm) H(mm) L(mm) 重量(kg/m) 型号 B(mm) H(mm) L(mm) 重量(kg/m)
T-04-6-2 200 60 900 12.35 T-04-6-2 200 60 410 5.36
T-04-10-2 200 100 900 13.46 T-04-10-2 200 100 450 6.67
T-04-15-2 200 150 900 16.19 T-04-15-2 200 150 500 9.30
T-04-6-3 300 60 1000 14.24 T-04-6-3 300 60 410 6.19
T-04-10-3 300 100 1000 17.45 T-04-10-3 300 100 450 8.32
T-04-15-3 300 150 1000 19.31 T-04-15-3 300 150 500 11.12
T-04-6-4 400 60 1100 21.11 T-04-6-4 400 60 410 9.18
T-04-10-4 400 100 1100 25.35 T-04-10-4 400 100 450 12.55
T-04-15-4 400 150 1100 28.10 T-04-15-4 400 150 500 16.16
T-04-6-5 500 60 1200 25.68 T-04-6-5 500 60 410 11.16
T-04-10-5 500 100 1200 28.98 T-04-10-5 500 100 450 14.34
T-04-15-5 500 150 1200 32.61 T-04-15-5 500 150 500 18.76
T-04-6-6 600 60 1300 29.32 T-04-6-6 600 60 410 12.74
T-04-10-6 600 100 1300 32.72 T-04-10-6 600 100 450 16.19
T-04-15-6 600 150 1300 40.13 T-04-15-6 600 150 500 23.08
T-04-6-8 800 60 1500 36.90 T-04-6-8 800 60 410 16.04
T-04-10-8 800 100 1500 39.86 T-04-10-8 800 100 450 19.73
T-04-15-8 800 150 1500 43.48 T-04-15-8 800 150 500 25.00

59 / YIDING ELECTRIC
