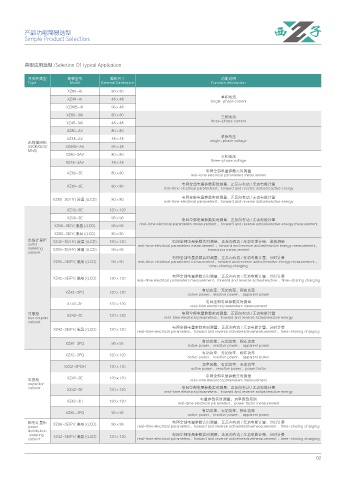

产品功能简易选型
Simple Product Selection

典型应用选型 /Selection Of Typical Application

开关柜类型 规格型号 面框尺寸 功能说明
Type Model External Dimension Function description
XZ80-AI 80×80
单相电流
XZ48-AI 48×48 single-phase current
XZ96B-AI 96×48
XZ80-3AI 80×80 三相电流
three-phase current
XZ48-3AI 48×48
XZ80-AV 80×80
单相电压
XZ48-AV 48×48
出线抽屉柜 single-phase voltage
(GCK/GCS/ XZ96B-AV 96×48
MNS)
XZ80-3AV 80×80 三相电压
three-phase voltage
XZ48-3AV 48×48
电网全部电量参数实时测量
XZ80-3E 80×80 real-time electrical parameters measuremen
电网全部电量参数实时测量、正反向有功 / 无功电能计量
XZ80-3E 80×80
real-time electrical parameterst、forward and reverse active/reactive energy
电网全部电量参数实时测量、正反向有功 / 无功电能计量
XZ80-3E/HY( 液晶 )(LCD) 80×80
real-time electrical parameterst、forward and reverse active/reactive energy
XZ42-3E 120×120
XZ96-3E 96×96 电网全部电量参数实时测量、正反向有功 / 无功电能计量
real-time electrical parameters measurement 、forward and reverse active/reactive energy measurement
XZ96-3E/Y( 液晶 )(LCD) 96×96
XZ80-3E/Y( 液晶 )(LCD) 80×80
出线计量柜 XZ42-3E/HY( 液晶 )(LCD) 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量、谐波测量
outlet real-time electrical parameters measurement 、forward and reverse active/reactive energy measurement、
metering XZ96-3E/HY( 液晶 )(LCD) 96×96 harmonics measurement
cabinet
电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
XZ96-3E/FY( 液晶 )(LCD) 96×96 real-time electrical parameters measurement、forward and reverse active/reactive energy measurement 、
time-sharing charging
电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
XZ42-3E/FY( 液晶 )(LCD) 120×120
real-time electrical parameters measurement、forward and reverse active/reactive 、time-sharing charging
有功功率、无功功率、视在功率
XZ42-3PQ 120×120
active power、reactive power、 apparent power
电网全部电量参数实时测量
XZ42-3E 120×120
real-time electrical parameters measurement
母联柜 XZ42-3E 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量
bus coupler real-time electrical parameters、forward and reverse active/reactive energy
cabinet
电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
XZ42-3E/FY( 液晶 )(LCD) 120×120
real-time electrical parameters、forward and reverse active/reactivemeasurement、 time-sharing charging
有功功率、无功功率、视在功率
XZ96-3PQ 96×96
active power、reactive power、 apparent power
XZ42-3PQ 120×120 有功功率、无功功率、视在功率
active power、reactive power、 apparent power
XZ42-3PQH 120×120 功率因数、有功功率、无功功率
active power、reactive power、power factor
电网全部电量参数实时测量
电容柜 XZ42-3E 120×120 real-time electrical parameters measurement
capacitor
cabinet XZ42-3E 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量
real-time electrical parameters、forward and reverse active/reactive energy
电量参数实时测量，功率因数控制
XZ42-3H 120×120 real-time electrical parameters、power factor measurement
有功功率、无功功率、视在功率
XZ96-3PQ 96×96
active power、reactive power、 apparent power
配电计量柜 XZ96-3E/FY( 液晶 )(LCD) 96×96 电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
power real-time electrical parameters、forward and reverse active/reactivemeasurement 、time-sharing charging
distribution
metering XZ42-3E/FY( 液晶 )(LCD) 120×120 电网全部电量参数实时测量、正反向有功 / 无功电能计量、分时计费
cabinet real-time electrical parameters、forward and reverse active/reactivemeasurement 、time-sharing charging
