P. 92

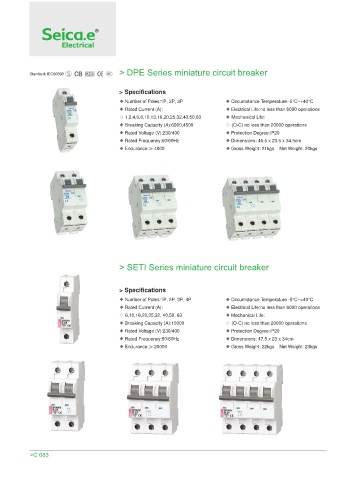

> DPE Series miniature circuit breaker
Standard: IEC60898
> Specifications
Number of Poles:1P, 2P, 3P Circumstance Temperature:-5°C~+40°C
Rated Current (A): Electrical Life:no less than 6000 operations
1,2,4,6,8,10,13,16,20,25,32,40,50,63 =Mechanical Life:
Breaking Capacity (A):6000,4500 =(O-C) no less than 20000 operations
Rated Voltage (V):230/400 Protection Degree:IP20
Rated Frequency:50/60Hz Dimensions: 46.5 x 23.5 x 34.5cm
Endurance: 4000 Gross Weight: 21kgs Net Weight: 20kgs
> SETI Series miniature circuit breaker
> Specifications
Number of Poles:1P, 2P, 3P, 4P Circumstance Temperature:-5°C~+40°C
Rated Current (A): Electrical Life:no less than 6000 operations
=6,10,16,20,25,32, 40,50, 63 Mechanical Life:
Breaking Capacity (A):10000 =(O-C) no less than 20000 operations
Rated Voltage (V):230/400 Protection Degree:IP20
Rated Frequency:50/60Hz Dimensions: 47.5 x 23 x 34cm
Endurance: 20000 Gross Weight: 22kgs Net Weight: 23kgs
>C 083
