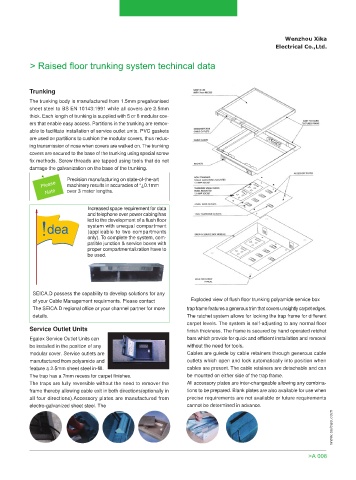

> Raised floor trunking system techincal data

Trunking
The trunking body is manufactured from 1.5mm pregalvanised
sheet steel to BS EN 10143:1991 while all covers are 2.5mm
thick. Each length of trunking is supplied with 5 or 6 modular cov-
ers that enable easy access. Partitions in the trunking are remov-
able to facilitate installation of service outlet units. PVC gaskets
are used on partitions to cushion the modular covers, thus reduc-
ing transmission of nose when covers are walked on. The trunking
covers are secured to the base of the trunking using special screw
fix methods. Screw threads are tapped using tools that do not
damage the galvanization on the base of the trunking.

Precision manufacturing on state-of-the-art
Please machinery results in accuracies of °¿0.1mm
Note over 3 meter lengths.

Increased space requirement for data
and telephone over power cabing has
led to the development of a flush floor
system with unequal compartment
(applicable to two compartments
only). To complete the system, com-
patible junction & service boxes with
proper compartmentalization have to
be used.

SEICA.D possess the capability to develop solutions for any
of your Cable Management requirments. Please contact Exploded view of flush floor trunking polyamide service box
The SEICA.D regional office or your channel partner for more trap frame features a generous trim that covers unsightly carpet edges.
details. The ratchet system allows for locking the trap frame for different
carpet levels. The system is self-adjusting to any normal floor
Service Outlet Units finish thickness. The frame is secured by hand operated retchet
Egalex Service Outlet Units can bars which provide for quick and efficient installation and removal
be installed in the position of any without the need for tools.
modular cover. Service outlets are Cables are guiede by cable retainers through generous cable
manufactured from polyamide and outlets which open and lock automatically into position when
feature a 2.5mm sheet steel in-fill. cables are present. The cable retainers are detachable and can
The trap has a 7mm recess for carpet finishes. be mounted on either side of the trap frame.
The traps are fully reversible without the need to remover the All accessory plates are inter-changeable allowing any combina-
frame thereby allowing cable exit in both directions(optionally in tions to be prepared. Blank plates are also available for use when
all four directions).Accessory plates are manufactured from precise requirements are not available or future requirements
electro-galvanized sheet steel. The cannot be determined in advance.
www.seicae.com

>A 008
