EntelliGuard* L

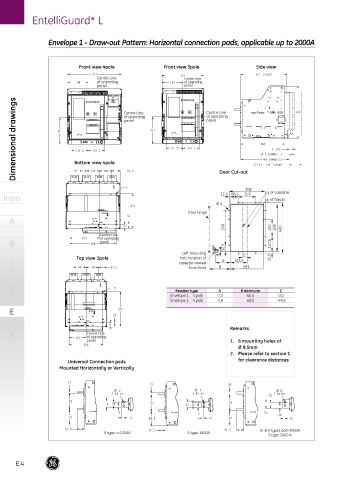

Envelope 1 - Draw-out Pattern: Horizontal connection pads, applicable up to 2000A

Front view 4pole Front view 3pole Side view
Centre Line Centre Line
of operating of operating
panel Centre Line panel Centre Line

Dimensional drawings Bottom view 4pole of operating of operating

panel
panel

Door Cut-out

308 of cassette
Intro 12,5 66,5 150 of fascia
Ø 4
Door hinge
A
300 150 405 430
Centre Line
of operating
B panel 127,5
52,5
Left mounting 9,5
Top view 3pole hole location of A 141,5 C 12,5
C cassette viewed B 283
from front

D Breaker type A B minimum C
Envelope 1 3 pole -7,0 60,0 0,0
Envelope 1 4 pole -7,0 60,0 -49,5
E

Remarks
X Centre Line
of operating
panel 1. 6 mounting holes of
Ø 9,5mm
2. Please refer to section C
Universal Connection pads for clearance distances
Mounted Horizontally or Vertically

N & R types 400-2000A
S type <=1250A S type 1600A
S type 2000 A
