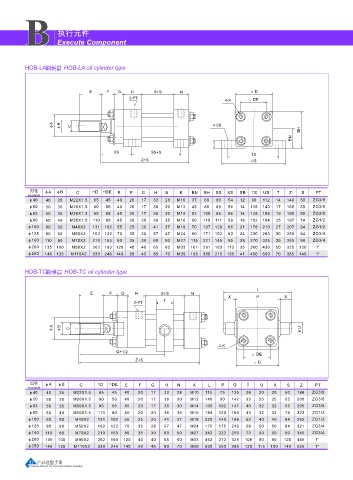

Page 26 - 上海山耐斯气动元件有限公司（B系列执行元件）

B B Execute Component
执行元件

HOB-LA型油缸 HOB-LA oil cylinder type B型标准油缸 Standard oil cylinder B type

E F G H S+S N □D
2-PT
4-K □DE E F G H S+S N
□D
2-PT
□DE
φA φB C 4-SB
BH
BN φA φB C

XS SS+S
TS
Z+S US I J
Z+S
4-K

缸径 φA φB C □D □DE E F G H N K BN BH SS XS SB TS US T Z S PT 缸径 φA φB C □D □DE E F G H N I J K S Z PT
Available Available
φ40 40 25 M22X1.5 65 45 40 20 17 33 28 M10 37 69 80 54 12 90 112 14 148 50 ZG3/8 φ32 35 16 M14X1.5 52 36 28 10 15 25 25 53 100 M8 50 153 ZG1/4
φ50 50 30 M26X1.5 80 56 40 20 17 38 30 M12 45 85 89 56 14 115 140 17 160 55 ZG3/8 φ40 40 20 M16X1.5 64 45 28 17 20 30 30 65 110 M8 50 175 ZG3/8
φ63 50 35 M30X1.5 95 65 45 20 17 38 30 M14 52 100 89 56 14 128 156 19 160 55 ZG3/8 φ50 50 20 M16X1.5 70 50 28 17 20 30 30 65 110 M10 50 175 ZG3/8
φ80 60 40 M30X1.5 110 80 45 20 20 38 35 M16 60 115 111 59 18 152 184 25 187 74 ZG1/2 φ63 50 25 M22X1.5 85 60 40 20 30 31 31 90 112 M10 50 202 ZG3/8
φ100 80 50 M40X2 131 102 55 25 20 41 37 M18 70 137 129 66 21 178 210 27 207 84 ZG1/2 φ80 60 32 M26X2 106 74 40 20 32 37 37 92 129 M12 55 221 ZG1/2
φ125 90 60 M50X2 162 122 70 35 28 57 47 M24 90 171 152 93 24 230 280 30 250 84 ZG3/4 φ100 80 40 M30X2 122 90 45 20 32 37 37 97 154 M14 80 251 ZG1/2
φ160 110 80 M70X2 210 153 80 35 30 60 50 M27 115 221 145 95 28 270 325 35 265 90 ZG3/4 φ125 90 50 M40X2 147 110 55 25 35 44 44 115 168 M16 80 283 ZG1/2
φ200 135 100 M90X2 262 193 120 40 40 65 60 M33 161 291 183 113 35 360 430 50 325 120 1″ φ160 100 60 M52X2 188 145 65 30 32 55 55 130 190 M20 80 320 ZG3/4
φ250 146 125 M110X2 330 246 140 50 45 80 70 M39 195 360 215 135 41 450 550 70 385 140 1″

MCB-CA型油缸 MCB-CA oil cylinder type
HOB-TC型油缸 HOB-TC oil cylinder type

L □D
E F G H S+S N
X P X E F G H S+S N L □DE
T
2-PT 2-PT
M V EW
R
φA φB C φU φA C
φB
φP
4-K
Q+1/2
□DE
Z+S
Z+S 4-K
□D
缸径 φA φB C □D □DE E F G H N K L P Q T U X S Z PT
Available 缸径
φ40 40 25 M22X1.5 65 45 40 20 17 33 28 M10 115 75 135 28 20 20 50 188 ZG3/8 φA φB C □D □DE E F G H N L M V P R EW K S Z PT
Available
φ50 50 30 M26X1.5 80 56 40 20 17 38 30 M12 140 90 142 33 25 25 55 200 ZG3/8 φ32 35 16 M14X1.5 52 36 28 10 15 25 25 31 11 20 10 10 16 M8 50 184 ZG1/4
φ63 50 35 M30X1.5 95 65 45 20 17 38 30 M14 166 102 147 40 32 32 55 205 ZG3/8 φ40 40 20 M16X1.5 64 45 28 17 20 30 30 36 11 25 13 13 22 M8 50 211 ZG3/8
φ80 60 40 M30X1.5 110 80 45 20 20 38 35 M16 184 120 160 43 32 32 74 323 ZG1/2 φ50 50 20 M16X1.5 70 50 28 17 20 30 30 36 12 24 13 13 22 M10 50 211 ZG3/8
φ100 80 50 M40X2 131 102 55 25 20 41 37 M18 220 140 186 53 40 40 84 262 ZG1/2 φ63 50 25 M22X1.5 85 60 40 20 30 31 31 46 15 31 20 20 30 M10 50 248 ZG3/8
φ125 90 60 M50X2 162 122 70 35 28 57 47 M24 175 175 240 58 50 50 84 321 ZG3/4 φ80 60 32 M26X2 106 74 40 20 32 37 37 68 18 50 30 30 30 M12 55 289 ZG1/2
φ160 110 80 M70X2 210 153 80 35 30 60 50 M27 342 222 250 73 60 60 90 345 ZG3/4 φ100 80 40 M30X2 122 90 45 20 32 37 37 73 18 55 35 35 35 M14 80 324 ZG1/2
φ200 135 100 M90X2 262 193 120 40 40 65 60 M33 452 272 325 108 90 90 120 445 1″ φ125 90 50 M40X2 147 110 55 25 35 44 44 73 18 55 35 35 35 M16 80 352 ZG1/2
φ250 146 125 M110X2 330 246 140 50 45 80 70 M39 560 360 385 120 115 100 140 525 1″ φ160 100 60 M52X2 188 145 65 30 35 55 55 82 22 60 40 40 40 M20 80 402 ZG3/4
