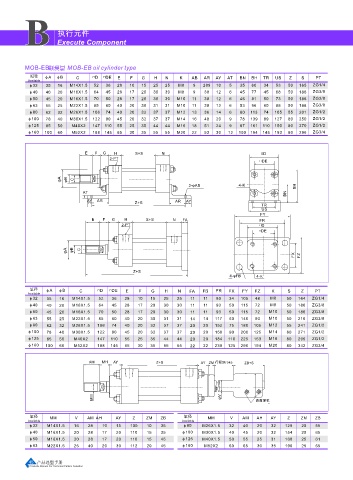

Page 28 - 上海山耐斯气动元件有限公司（B系列执行元件）
P. 28
B B Execute Component
执行元件
MOB-EB型油缸 MOB-EB oil cylinder type
缸径 φA φB C □D □DE E F G H N K AB AR AY AT BN BH TR US Z S PT
Available
φ32 35 16 M14X1.5 52 36 28 10 15 25 25 M8 9 289 10 5 35 60 34 53 50 165 ZG1/4
φ40 40 20 M16X1.5 64 45 28 17 20 30 30 M8 9 38 12 6 45 77 45 68 50 186 ZG3/8
φ50 45 20 M16X1.5 70 50 28 17 20 30 30 M10 11 38 12 6 46 81 50 73 50 186 ZG3/8
φ63 55 25 M22X1.5 85 60 40 20 30 31 31 M10 11 38 12 6 53 96 60 88 50 188 ZG3/8
φ80 62 32 M26X1.5 106 74 40 20 32 37 37 M12 13 36 14 6 60 113 74 105 55 201 ZG1/2
φ100 78 40 M30X1.5 122 90 45 20 32 37 37 M14 16 48 20 9 78 139 89 127 80 250 ZG1/2
φ125 85 50 M40X2 147 110 55 25 35 44 44 M16 18 51 24 9 87 161 110 150 80 270 ZG1/2
φ160 100 60 M52X2 188 145 65 30 35 55 55 M20 22 53 30 12 100 194 145 193 80 296 ZG3/4
E F G H S+S N □D
2-PT
□DE
φA φB C
2-φAB 4-K BH
AT BN
AY AR AR AY
Z+S
TR
US
FY
E F G H S+S N FA FR
2-PT □D
□DE
φA φB C
FX FZ
Z+S
4-φFB 4-K
缸径 φA φB C □D □DE E F G H N FB FR FX FY FZ K S Z PT
Available FA
φ32 35 16 M14X1.5 52 36 28 10 15 25 25 11 11 80 34 105 48 M8 50 164 ZG1/4
φ40 40 20 M16X1.5 64 45 28 17 20 30 30 11 11 93 50 115 72 M8 50 186 ZG3/8
φ50 45 20 M16X1.5 70 50 28 17 20 30 30 11 11 93 50 115 72 M10 50 186 ZG3/8
φ63 55 25 M22X1.5 85 60 40 20 30 31 31 14 14 117 60 140 90 M10 50 216 ZG3/8
φ80 62 32 M26X1.5 106 74 40 20 32 37 37 20 20 152 75 180 105 M12 55 241 ZG1/2
φ100 78 40 M30X1.5 122 90 45 20 32 37 37 20 20 158 90 200 125 M14 80 271 ZG1/2
φ125 85 50 M40X2 147 110 55 25 35 44 44 20 20 184 110 225 153 M16 80 299 ZG1/2
φ160 100 60 M52X2 188 145 65 30 35 55 55 22 22 230 125 290 194 M20 80 342 ZG3/4
AM MH AY Z+S AY ZM 行程Stroke ZB+S
MM φV 表面滚花
缸径 MM V AM AH AY Z ZM ZB 缸径 MM V AM AH AY Z ZM ZB
Available Available
φ32 M14X1.5 16 28 10 15 100 10 35 φ80 M26X1.5 32 40 20 32 129 20 55
φ40 M16X1.5 20 28 17 20 110 15 35 φ100 M30X1.5 40 45 20 32 154 20 65
φ50 M16X1.5 20 28 17 20 110 15 45 φ125 M40X1.5 50 55 25 31 168 25 61
φ63 M22X1.5 25 40 20 30 112 20 45 φ160 M52X2 60 65 30 35 190 25 65
