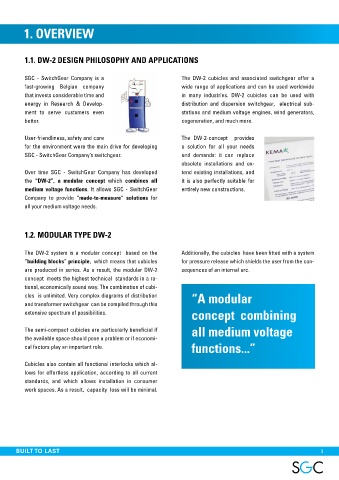

Page 3 - SGC SwitchGear Company

1. OVERVIEW

1.1. DW-2 DESIGN PHILOSOPHY AND APPLICATIONS

SGC - SwitchGear Company is a The DW-2 cubicles and associated switchgear offer a
fast-growing Belgian company wide range of applications and can be used worldwide
that invests considerable time and in many industries. DW-2 cubicles can be used with
energy in Research & Develop- distribution and dispersion switchgear, electrical sub-
ment to serve customers even stations and medium voltage engines, wind generators,
better. cogeneration, and much more.

User-friendliness, safety and care The DW-2-concept provides
for the environment were the main drive for developing a solution for all your needs
SGC - SwitchGear Company’s switchgear. and demands: it can replace
obsolete installations and ex-
Over time SGC - SwitchGear Company has developed tend existing installations, and
the “DW-2”, a modular concept which combines all it is also perfectly suitable for
medium voltage functions. It allows SGC - SwitchGear entirely new constructions.
Company to provide “made-to-measure” solutions for
all your medium voltage needs.

1.2. MODULAR TYPE DW-2

The DW-2 system is a modular concept based on the Additionally, the cubicles have been fitted with a system
“building blocks” principle, which means that cubicles for pressure release which shields the user from the con-
are produced in series. As a result, the modular DW-2 sequences of an internal arc.
concept meets the highest technical standards in a ra-
tional, economically sound way. The combination of cubi-
cles is unlimited. Very complex diagrams of distribution “A modular
and transformer switchgear can be compiled through this
concept combining
extensive spectrum of possibilities.

The semi-compact cubicles are particularly beneficial if all medium voltage
the available space should pose a problem or if economi-
cal factors play an important role. functions...”

Cubicles also contain all functional interlocks which al-
lows for effortless application, according to all current
standards, and which allows installation in consumer
work spaces. As a result, capacity loss will be minimal.
