1. 特点 2. 概述

Feature General

● 安全挡板活门自动关闭 MVset 型户内金属铠装抽出式开关设
Self-closing shield for safety protection
备，由赛德翰品牌授权我公司制作，具有
● 检修时可用挂锁锁定带电侧的活门，以实 带电母线侧
Incoming busbar 现代国际水平的产品。
现有效隔离，确保检修人员的安全
Safety shield can be pad-locked during maintenance 馈线电缆侧 MVset indoor metal-enclosed drawout switchgear
Outgoing busbar
is authorized by Sydenham, It is a latest product with
全内燃弧设计 international level.
Internal arc protection design

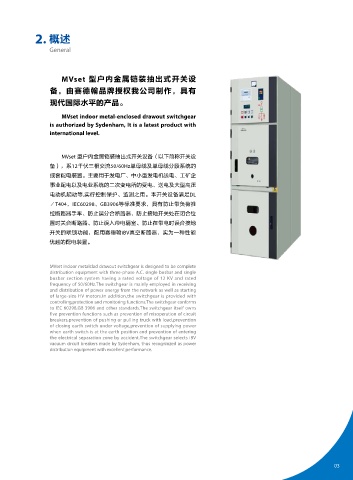

● 一体式提升门设计 MVset 型户内金属铠装抽出式开关设备（以下简称开关设
Integrated lift-up door design
备），系12千伏三相交流50/60Hz单母线及单母线分段系统的
● 断路器室门四周全方位固定有效防止内燃烧 成套配电装置。主要用于发电厂、中小型发电机送电、工矿企
弧冲击
事业配电以及电业系统的二次变电所的受电、送电及大型高压
Full range fixing around CB room for internal arc
shock protection of the VCB room 电动机起动等,实行控制保护、监测之用。本开关设备满足DL
● 紧急分闸按钮 ／T404，IEC60298、GB3906等标准要求，具有防止带负荷推
Emergency OFF button 拉断路器手车、防止误分合断路器、防止接地开关处在闭合位
置时关合断路器、防止误入带电隔室、防止在带电时误合接地
● 电缆连接高度大于650mm 紧急分闸按钮 多点固定 开关的联锁功能，配用赛德翰iBV真空断路器，实为一种性能
Space for cable connection higher than 650mm Emergency OFF button Multi-points xing
优越的配电装置。
● 电缆前或后连接
Front & REAR access of cable connection
MVset indoor metalclad drawout switchgear is designed to be complete
● 柜体可离墙或靠墙安装 distribution equipment with three-phase A.C. single busbar and single
Cubicle body can be installed against the wall. busbar section system having a rated voltage of 12 KV and rated
frequency of 50/60Hz.The switchgear is mainly employed in receiving
and distribution of power energy from the network as well as starting
● 可选电动操作底盘手车、接地开关，实现更智 of large-size HV motors.In addition,the switchgear is provided with
controlling,protection and monitoring functions.The switchgear conforms
能化的遥控操作. to IEC 60298,GB 3906 and other standards.The switchgear itself owns
Auto-trolley system and auto earthing switch as five prevention functions such as prevention of misoperation of circuit
options for remote operation breakers,prevention of pushing or pulling truck with load,prevention
of closing earth switch under voltage,prevention of supplying power
● 互感器安装板可翻转式，方便维护 when earth switch is at the earth position and prevention of entering
Swing CT support for easy maintenance the electrical separation zone by accident.The switchgear selects iBV
vacuum circuit breakers made by Sydenham, thus recogninzed as power
● 红外测量窗口设计 distribution equipment with excellent performance.
Special designed window for infra-red temperature
monitoring
