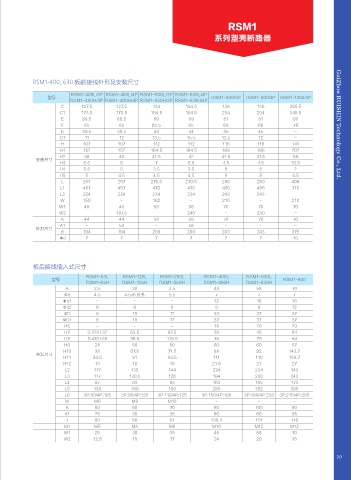

RSM1
系列塑壳断路器

RSM1-400、630 板前接线外形及安装尺寸

RSM1-400L/3P RSM1-400L/4P RSM1-630L/3P RSM1-630L/4P
型号 RSM1-800/3P RSM1-800/4P RSM1-1250/3P
RSM1-400H/3P RSM1-400H/4P RSM1-630H/3P RSM1-630H/4P
C 127.5 127.5 134 134.5 136 136 365.5
C1 173.5 173.5 184.5 184.5 204 204 345.5
E 88.5 88.5 89 89 81 81 97
F 65 65 65.5 65 66 66 78 GuiZhou RUISHIN Technology Co., Ltd.
G 30.5 30.5 44 44 45 45 -
G1 11 12 13.5 15.5 12.5 12 -
H 107 107 112 112 116 116 141
H1 152 152 164.5 164.5 168 168 202
H2 38 40 41.5 42 41.5 41.5 58
安装尺寸
H3 6.5 6 7 6.5 4.5 4.5 16.5
H4 5.5 5 3.5 3.5 5 5 2
H5 5 4.5 4.5 4.5 8 8 4.5
L 257 257 270.5 270.5 280 280 406
L1 457 457 470 470 470 485 715
L2 224 224 234 234 243 243
W 150 - 182 - 210 - 210
W1 48 48 58 58 70 70 70
W2 197.5 240 - 280 -
A 44 44 58 58 70 70 70
A1 - 50 - 58 - - -
外形尺寸
B 194 194 200 200 243 243 375
Φd 7 7 7 7 7 7 10

板后接线插入式尺寸

RSM1-63L RSM1-125L RSM1-250L RSM1-400L RSM1-630L
型号 RSM1-800
RSM1-63H RSM1-125H RSM1-250H RSM1-400H RSM1-630H
A 2.5 30 3.5 44 58 70
Φd 4.5 4.5x6 长孔 5.5 7 7 7
Φd1 - - - 12 16 16
Φd2 6 8 8 9 9 12
ΦD 8 10 12 33 37 37
ΦD1 8 10 12 33 37 37
H6 - - - 18 20 20
H7 S:32/H:32 63.5 67.5 39 45 64
H8 S:47/H:38 96.5 118.5 74 79 64
H9 28 50 50 60 60 87
H10 38 67.5 71.5 88 92 143.7
安装尺寸
H11 44.5 81 84.5 111 110 158.7
H12 10 18 18 21.5 21 27
L2 117 136 144 224 234 143
L3 117 130.5 126 194 200 243
L4 97 93 93 163 165 173
L5 138 180 190 285 302 305
L6 3P:80/4P:105 3P:95/4P:125 3P:110/4P:125 3P:150/4P:198 3P:180/4P:238 3P:215/4P:285
M M6 M8 M10 - - -
K 50 60 70 60 100 90
K1 25 30 35 66 66 95
J 60 58 54 130.4 124 146
M1 M5 M8 M8 M10 M12 M12
W1 25 30 35 48 58 70
W2 12.5 15 17 24 29 35

20
