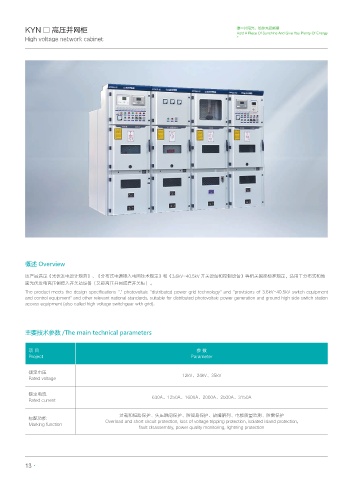

KYN □ 高压并网柜 撑一片阳光，给你充足能量
Hold A Piece Of Sunshine And Give You Plenty Of Energy
High voltage network cabinet

概述 Overview

该产品满足《光伏发电设计规范》、《分布式电源接入电网技术规定》和《3.6kV~40.5kV 开关设备和控制设备》等相关国家标准规定，适用于分布式和地
面光伏发电高压侧接入开关站设备（又称高压并网成套开关柜）。
The product meets the design specifications "," photovoltaic "distributed power grid technology" and "provisions of 3.6kV~40.5kV switch equipment
and control equipment" and other relevant national standards, suitable for distributed photovoltaic power generation and ground high side switch station
access equipment (also called high voltage switchgear with grid).

主要技术参数 /The main technical parameters

项 目 参 数
Project Parameter

额定电压 12kV、24kV、35kV
Rated voltage

额定电流 630A、1250A、1600A、2000A、2500A、3150A
Rated current

过载和短路保护、失压跳闸保护、防孤岛保护、故障解列、电能质量监测、防雷保护
标配功能 Overload and short circuit protection, loss of voltage tripping protection, isolated island protection,
Marking function
fault disassembly, power quality monitoring, lightning protection
