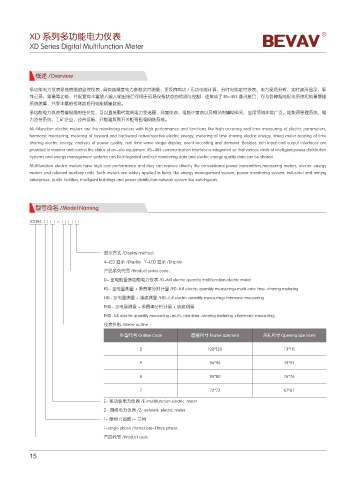

XD 系列多功能电力仪表
XD Series Digital Multifunction Meter

概述 /Overview

多功能电力仪表是高性能的监控仪表 , 具有高精度电力参数实时测量、正反向有功 / 无功电能计算、分时电能定时抄表、电力品质分析、实时波形显示、事
件记录、需量等功能，并配置有丰富放入输入输出接口可用于现场设备状态的检测与控制，还集成了 RS-485 通讯接口，可与各种智能配电系统和能量管理
系统统筹，共享丰富的检测数据和电能质量数据。
多功能电力仪表有着极高的性价比，可以直接取代常规电力变送器、测量仪表、电能计量表以及相关的辅助单元，应用领域非常广泛。如能源管理系统、电
力监控系统、工矿企业、公共设施、只能建筑和开关柜等配电网络系统。
Multifunction electric meters are the monitoring meters with high performance and functions like high accuracy real time measuring of electric parameters,
harmonic measuring, metering of forward and backward active/reactive electric energy, metering of time sharing electric energy, timed meter reading of time
sharing electric energy, analysis of power quality, real time wave shape display, event recording and demand. Besides, rich input and output interfaces are
provided to monitor and control the status of on-site equipment. RS-485 communication interface is integrated so that various kinds of intelligent power distribution
systems and energy management systems can be integrated and rich monitoring data and electric energy quality data can be shared.
Multifunction electric meters have high cost performance and they can replace directly the conventional power transmitters,measuring meters, electric energy
meters and relevant auxiliary units. Such meters are widely applied in fields like energy management system, power monitoring system, industrial and mining
enterprises, public facilities, intelligent buildings and power distribution network system like switchgears.

型号命名 /Model Naming

XD194 □ □ - □ □ □

显示方式 /Display method：
4-LED 显示 /Display Y-LCD 显示 /Display
产品系列代号 /Product series code：
D- 全电能量多功能电力仪表 /D-full electric quantity multifunction electric meter
FD- 全电量测量 + 多费率分时计量 /FD-full electric quantity measuring+multi-rate time-sharing metering
HD- 全电量测量 + 谐波测量 /HD-full electric quantity measuring+harmonic measuring
FHD- 全电量测量 + 多费率分时计量 + 谐波测量
FHD-full electric quantity measuring+multi-rate time-sharing metering +harmonic measuring
仪表外形 /Meter outline ：

外型代号 Outline Code 面框尺寸 Frame size(mm) 开孔尺寸 Opening size (mm)
2 120*120 111*111

9 96*96 91*91

8 80*80 76*76

7 72*72 67*67

E- 多功能电力仪表 /E-multifunction electric meter
Z- 网络电力仪表 /Z-network electric meter
1- 单相 /( 省略 )- 三相
1-single phase /(omission)-Three phase
产品代号 /Product code
