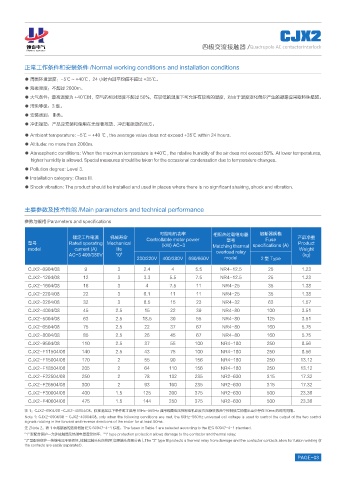

CJX2

ߕ෼׈గ 四极交流接触器 /Quadrupole AC contactorinterlock
*7#06#+ '.'%64+%

正常工作条件和安装条件 /Normal working conditions and installation conditions
● 周围环境温度：-5℃ ~ +40℃，24 小时内其平均值不超过 +35℃。
● 海拔高度：不超过 2000m。
● 大气条件：最高温度为 +40℃时，空气的相对湿度不超过 50%，在较低的温度下可允许有较高的湿度，对由于温度变化偶尔产生的凝露应采取特殊措施。
● 污染等级：3 级。
● 安装类别：Ⅲ类。
● 冲击振动：产品应安装和使用在无显著摇动、冲击和振动的地方。
● Ambient temperature: -5℃ ~ +40 ℃ , the average value does not exceed +35℃ within 24 hours.
● Altitude: no more than 2000m.
● Atmospheric conditions: When the maximum temperature is +40℃ , the relative humidity of the air does not exceed 50%. At lower temperatures,
higher humidity is allowed. Special measures should be taken for the occasional condensation due to temperature changes.
● Pollution degree: Level 3.
● Installation category: Class III.
● Shock vibration: The product should be installed and used in places where there is no significant shaking, shock and vibration.

主要参数及技术性能 /Main parameters and technical performance

参数与规格 Parameters and specifications

可控电机功率 相配热过载继电器 熔断器规格
额定工作电流 机械寿命 Controllable motor power Fuse 产品净重
型号
型号 Rated operating Mechanical (kW) AC-3 Matching thermal specifications (A) Product
model current (A) life overload relay Weight
AC-3 400/380V 10 6 (kg)
230/220V 400/380V 690/660V model 2 型 Type
CJX2-0904/08 9 3 2.4 4 5.5 NR4-12.5 25 1.23
CJX2-1204/08 12 3 3.3 5.5 7.5 NR4-12.5 25 1.23
CJX2-1604/08 16 3 4 7.5 11 NR4-25 35 1.38
CJX2-2204/08 22 3 6.1 11 11 NR4-25 35 1.38
CJX2-3204/08 32 3 8.5 15 23 NR4-32 63 1.57
CJX2-4004/08 45 2.5 15 22 39 NR4-80 100 3.51
CJX2-5004/08 63 2.5 18.5 30 55 NR4-80 125 3.51
CJX2-6504/08 75 2.5 22 37 67 NR4-80 160 5.75
CJX2-8004/08 85 2.5 26 45 67 NR4-80 160 5.75
CJX2-9504/08 110 2.5 37 55 100 NR4-180 250 8.56
CJX2-F11504/08 140 2.5 43 75 100 NR4-180 250 8.56
CJX2-F15004/08 170 2 55 90 156 NR4-180 250 13.12
CJX2-F18504/08 205 2 64 110 156 NR4-180 250 13.12
CJX2-F22504/08 250 2 78 132 235 NR2-630 315 17.32
CJX2-F26504/08 300 2 93 160 235 NR2-630 315 17.32
CJX2-F30004/08 400 1.5 125 200 375 NR2-630 500 23.36
CJX2-F40004/08 475 1.5 144 250 375 NR2-630 500 23.36
注 1：CJX2-0904/08 ~CJX2-40004/08，仅在满足以下条件时才选用 50Hz-560Hz 通用线圈电压控制电机正反方向旋转的两个控制信号的输出至少存在 50ms 的时间间隔。
Note 1: CJX2-0904/08 ~ CJX2-40004/08, only when the following conditions are met, the 50Hz-560Hz universal coil voltage is used to control the output of the two control
signals rotating in the forward and reverse directions of the motor for at least 50ms.
注 2Note 2：表 1 中熔断器的选用根据 IEC 60947-4-1 标准。The fuses in Table 1 are selected according to the IEC 60947-4-1 standard.
"1" 型配合保护一允许接触器及热继电器遭受损坏；"1" type protection protection allows damage to the contactor and thermal relay;
"2"型配合保护一热继电器不受损坏，接触器触头允许熔焊（如果触头容易分离）。The "2" type fit protects a thermal relay from damage and the contactor contacts allow for fusion welding (if
the contacts are easily separated).

PAGE-08
