CJX2

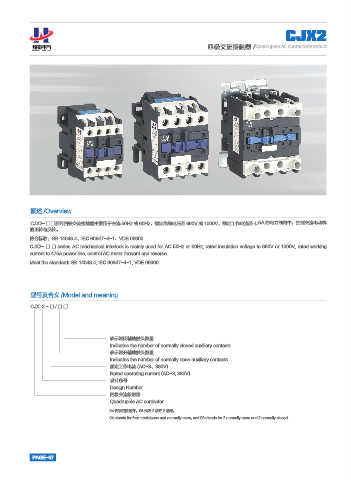

ߕ෼׈గ 四极交流接触器 /Quadrupole AC contactorinterlock
*7#06#+ '.'%64+%

概述 /Overview
CJX2- □□系列四极交流接触器主要用于交流 50Hz 或 60Hz，额定绝缘电压至 660V 或 1000V，额定工作电流至 475A 的电力线路中，控制交流电动机
的正转与反转。
符合标准：GB 14048.4、IEC 60947-4-1、VDE 06600
CJX2- □ □ series AC mechanical interlock is mainly used for AC 50Hz or 60Hz, rated insulation voltage to 660V or 1000V, rated working
current to 475A power line, control AC motor forward and reverse.
Meet the standard: GB 14048.4, IEC 60947-4-1, VDE 06600

型号及含义 /Model and meaning
CJX 2 - □ / □ □

表示常闭辅助触头数量
Indicates the number of normally closed auxiliary contacts
表示常开辅助触头数量
Indicates the number of normally open auxiliary contacts
额定工作电流 (AC-3、380V)
Rated operating current (AC-3, 380V)
设计序号
Design Number
四极交流接触器
Quadrupole AC contactor
04 代表四阻常开，08 代表 2 常开 2 常闭。
04 stands for four-resistance and normally open, and 08 stands for 2 normally open and 2 normally closed.

PAGE-07
