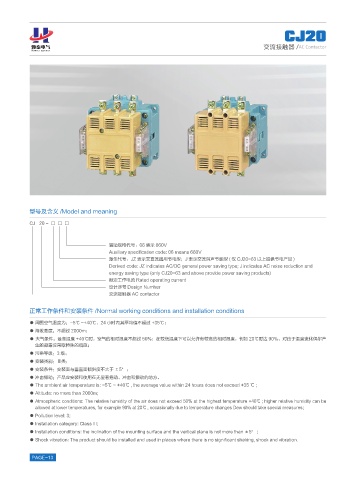

Page 18 - 浙江焕泰电气科技有限公司

CJ20

ߕ෼׈గ 交流接触器 /AC Contactor
*7#06#+ '.'%64+%

型号及含义 /Model and meaning

CJ 20 - □ □ □

辅助规格代号：06 表示 660V
Auxiliary specification code: 06 means 660V
派生代号：JZ 表示交直流通用节电型；J 表示交流消声节能型 ( 仅 CJ20-63 以上提供节电产品 )
Derived code: JZ indicates AC/DC general power saving type; J indicates AC noise reduction and
energy saving type (only CJ20-63 and above provide power saving products)
额定工作电流 Rated operating current
设计序号 Design Number
交流接触器 AC contactor

正常工作条件和安装条件 /Normal working conditions and installation conditions

● 周围空气温度为：-5℃ ~+40℃，24 小时内其平均值不超过 +35℃；
● 海拔高度：不超过 2000m；
● 大气条件：最高温度 +40℃时，空气的相对湿度不超过 50%；在较低温度下可以允许有较高的相对湿度，例如 20℃时达 90%，对由于温度变化偶尔产
生的凝露应采取特殊的措施；
● 污染等级：3 级；
● 安装类别：Ⅲ类；
● 安装条件：安装面与垂直面倾斜度不大于 ±5°；
● 冲击振动：产品应安装和使用在无显著摇动、冲击和振动的地方。
● The ambient air temperature is: -5℃ ~ +40℃ , the average value within 24 hours does not exceed +35 ℃ ;
● Altitude: no more than 2000m;
● Atmospheric conditions: The relative humidity of the air does not exceed 50% at the highest temperature +40℃ ; higher relative humidity can be
allowed at lower temperatures, for example 90% at 20℃ , occasionally due to temperature changes Dew should take special measures;
● Pollution level: 3;
● Installation category: Class III;
● Installation conditions: the inclination of the mounting surface and the vertical plane is not more than ±5° ;
● Shock vibration: The product should be installed and used in places where there is no significant shaking, shock and vibration.

PAGE-13
