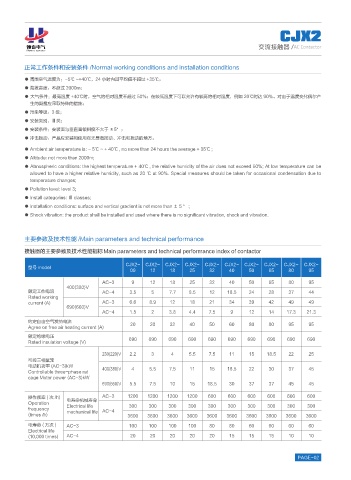

CJX2

ߕ෼׈గ 交流接触器 /AC Contactor
*7#06#+ '.'%64+%

正常工作条件和安装条件 /Normal working conditions and installation conditions
● 周围空气温度为：-5℃ ~+40℃，24 小时内其平均值不超过 +35℃；
● 海拔高度：不超过 2000m；
● 大气条件：最高温度 +40℃时，空气的相对湿度不超过 50%；在较低温度下可以允许有较高的相对湿度，例如 20℃时达 90%。对由于温度变化偶尔产
生的凝露应采取特殊的措施；
● 污染等级：3 级；
● 安装类别：Ⅲ类；
● 安装条件：安装面与垂直面倾斜度不大于 ±5°；
● 冲击振动：产品应安装和使用在无显著摇动、冲击和振动的地方。

● Ambient air temperature is: - 5℃ ~ + 40℃ , no more than 24 hours the average + 35℃ ;
● Altitude: not more than 2000m;
● Atmospheric conditions: the highest temperature + 40℃ , the relative humidity of the air does not exceed 50%; At low temperature can be
allowed to have a higher relative humidity, such as 20 ℃ at 90%. Special measures should be taken for occasional condensation due to
temperature changes;
● Pollution level: level 3;
● Install categories: Ⅲ classes;
● Installation conditions: surface and vertical gradient is not more than ± 5 ° ;
● Shock vibration: the product shall be installed and used where there is no significant vibration, shock and vibration.

主要参数及技术性能 /Main parameters and technical performance
接触器的主要参数及技术性能指标Main parameters and technical performance index of contactor

CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2- CJX2-
型号 model
09 12 18 25 32 40 50 65 80 95
AC-3 9 12 18 25 32 40 50 65 80 95
400(380)V
额定工作电流 AC-4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
Rated working
current (A) AC-3 6.6 8.9 12 18 21 34 39 42 49 49
690(660)V
AC-4 1.5 2 3.8 4.4 7.5 9 12 14 17.3 21.3
约定自由空气发热电流 20 20 32 40 50 60 80 80 95 95
Agree on free air heating current (A)
额定绝缘电压 690 690 690 690 690 690 690 690 690 690
Rated insulation voltage (V)

230(220)V 2.2 3 4 5.5 7.5 11 15 18.5 22 25
可控三相鼠笼
电动机功率 (AC-3)kW 400(380)V 4 5.5 7.5 11 15 18.5 22 30 37 45
Controllable three-phase rat
cage Motor power (AC-3)kW
690(660)V 5.5 7.5 10 15 18.5 30 37 37 45 45

操作频率 ( 次 /h) 电寿命机械寿命 AC-3 1200 1200 1200 1200 600 600 600 600 600 600
Operation Electrical life 300 300 300 300 300 300 300 300 300 300
frequency mechanical life AC-4
(times /h) 3600 3600 3600 3600 3600 3600 3600 3600 3600 3600
电寿命 ( 万次 ) AC-3 100 100 100 100 80 80 60 60 60 60
Electrical life
(10,000 times) AC-4 20 20 20 20 20 15 15 15 10 10

PAGE-02
