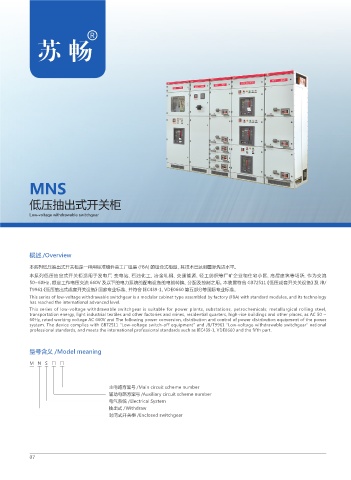

MNS

低压抽出式开关柜

Low-voltage withdrawable switchgear

概述 /Overview

本系列低压抽出式开关柜是一种用标准模件由工厂组装 (FBA) 的组合式柜型，其技术已达到国际先进水平。
本系列低压抽出式开关柜适用于发电厂、变电站、石油化工、冶金轧钢、交通能源、轻工纺织等厂矿企业和住宅小区、高层建筑等场所、作为交流
50~60Hz，额定工作电压交流 660V 及以下的电力系统的配电设备的电能转换、分配及控制之用。本装置符合 GB72511《低压成套开关关设备》及 JB/
T9961《低压抽出式成套开关设备》国家专业标准、并符合 IEC439-1、VDE0660 第五部分等国际专业标准。
This series of low-voltage withdrawable switchgear is a modular cabinet type assembled by factory (FBA) with standard modules, and its technology
has reached the international advanced level.
This series of low-voltage withdrawable switchgear is suitable for power plants, substations, petrochemicals, metallurgical rolling steel,
transportation energy, light industrial textiles and other factories and mines, residential quarters, high-rise buildings and other places, as AC 50 ~
60Hz, rated working voltage AC 660V and The following power conversion, distribution and control of power distribution equipment of the power
system. The device complies with GB72511 "Low-voltage switch-off equipment" and JB/T9961 "Low-voltage withdrawable switchgear" national
professional standards, and meets the international professional standards such as IEC439-1, VDE0660 and the fifth part.

型号含义 /Model meaning

M N S □ □

主电路方案号 /Main circuit scheme number
辅助电路方案号 /Auxiliary circuit scheme number
电气系统 /Electrical System
抽出式 /Withdraw
封闭式开关柜 /Enclosed switchgear

07
