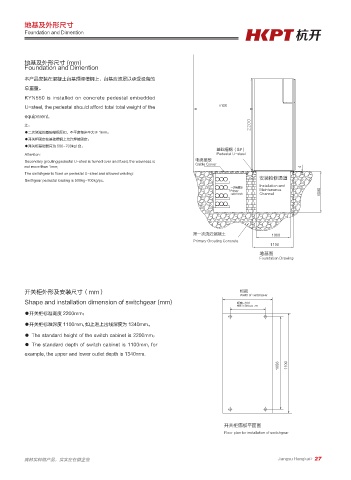

地基及外形尺寸
Foundation and Dimention

地基及外形尺寸 (mm)
Foundation and Dimention
本产品安装在混凝土台基预埋槽钢上，台基应该足以承受设备的
总重量。
KYN550 is installed on concrete pedestal embedded
U-steel, the pedestal should afford total total weight of the ̱
equipment.
注：
●二次浇灌的基础槽钢反扣，不平度每米不大于 1mm；
●开关柜固定在基础槽钢上允许焊接固定；
●开关柜基础载荷为 500-700kg/ 台。
۳ᆩയᨂἷ Ἰ
Attention: 1FEFTUBM 6 TUFFM
Secondary grouting pedestal U-steel is turned over and fixed, the waviness is ႃ፶ᄦ౜
$BCMF $PWFS
not more than 1mm;
The switchgear is fixed on pedestal U-steel and allowed welding:
߷ᜉೝξᤰ᥋
Swithgear pedestal loading is 500kg-700kg/pc.
*OTUBMMBUJPO BOE
ʷ൓ႃ፶෤
1SJNBSZ .BJOUFOBODF
DBCMF USFODI $IBOOFM

ኄʷ൓฻༟ຉіژ
1SJNBSZ (SPVUJOH $PODSFUF

ڡ۳ڏ
'PVOEBUJPO %SBXJOH

开关柜外形及安装尺寸（mm） ಅࠕ
8JEUI PG TXJUDIHFBS
Shape and installation dimension of switchgear (mm) ಅࠕ
8JEUI PG TXJUDIHFBS
●开关柜标准高度 2200mm；
●开关柜标准深度 1100mm, 如上进上出线深度为 1340mm。

● The standard height of the switch cabinet is 2200mm；
● The standard depth of switch cabinet is 1100mm, for
example, the upper and lower outlet depth is 1340mm.

नТಅअ౜ࣱ᭧ڏ
'MPPS QMBO GPS JOTUBMMBUJPO PG TXJUDIHFBS
