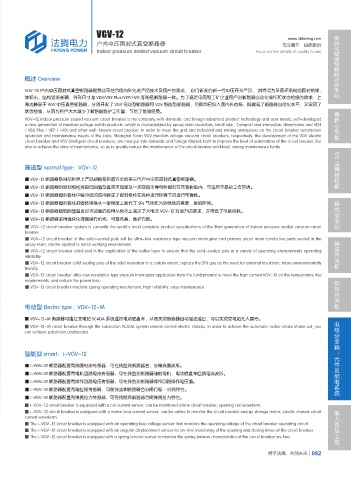

VGV-12 模块化智能预制舱式变电站
www.shfateng.com
户内中压固封式真空断路器 专注细节 品质取胜
Indoor pressure sealed vacuum circuit breaker Focus on the details of quality to win

概述 Overview

VGV-12 户内中压固封式真空断路器是我公司结合国内外先进产品技术及用户的需求， 自行研发的新一代中压开关产品， 其特点为采用环氧树脂固封绝缘 ,
体积小、结构紧凑新颖、外形尺寸与 VD4/VB2 Plus/VEP/HVX 等知名断路器一致。为了满足电网和工矿企业用户对断路器自动化操作和状态检修的需求，上
海法腾基于 VGV 中压真空断路器，分别开发了 VGV 电动型断路器和 VGV 智能型断路器，目前均已投入国内外市场，既提高了断路器自动化水平，又实现了
状态检修，从而为用户大大减少了断路器维护工作量，节约了维修经费。 最新小型柜
VGV-12 indoor pressure sealed vacuum circuit breaker is my company with domestic and foreign advanced product technology and user needs, self-developed
a new generation of medium voltage switch products, which is characterized by epoxy resin insulation, small size , Compact and innovative, dimensions and VD4
/ VB2 Plus / VEP / HVX and other well-known circuit breaker. In order to meet the grid and industrial and mining enterprises on the circuit breaker automation
operation and maintenance needs of the state, Shanghai Futon VGV medium voltage vacuum circuit breakers, respectively, the development of the VGV electric
circuit breaker and VGV intelligent circuit breakers, are now put into domestic and foreign Market, both to improve the level of automation of the circuit breaker, but
also to achieve the state of maintenance, so as to greatly reduce the maintenance of the circuit breaker workload, saving maintenance funds.
品牌授权柜 GE
普通型 normal type：VGV-12

■ VGV-12 断路器系目前世界上产品规格系列最齐全的第三代户内中压固封式真空断路器。
■ VGV-12 断路器的固封极柱将超低阻值型真空灭弧室及一次回路主导电件固封在环氧树脂内，可适用于恶劣工作环境。
■ VGV-12 断路器固封极柱中缓冲层的应用保证了固封极柱在各种运行环境下的运行可靠性。
箱式变电站
■ VGV-12 断路器固封极柱的固体绝缘从一定程度上替代了 SF6 气体作为外绝缘的需要，更加环保。
■ VGV-12 断路器超低阻值型真空灭弧室的应用从根本上满足了大电流 VGV-12 对温升的要求，并降低了电能损耗。
■ VGV-12 断路器采用模块化弹簧操作机构，可靠性高、维护方便。
■ VGV-12 circuit breaker system is currently the world's most complete product specifications of the third generation of indoor pressure sealed vacuum circuit
breaker.
■ VGV-12 circuit breaker of the solid-sealed pole will be ultra-low resistance type vacuum interrupter and primary circuit main conductive parts sealed in the 高压开关柜
epoxy resin, can be applied to harsh working environment.
■ VGV-12 circuit breaker solid seal in the application of the buffer layer to ensure that the solid-sealed pole in a variety of operating environments operating
reliability.
■ VGV-12 circuit breaker solid sealing pole of the solid insulation to a certain extent, replace the SF6 gas as the need for external insulation, more environmentally
friendly.
■ VGV-12 circuit breaker ultra-low resistance type vacuum interrupter application from the fundamental to meet the high current VGV-12 on the temperature rise 低压开关柜
requirements, and reduce the power loss.
■ VGV-12 circuit breaker modular spring operating mechanism, high reliability, easy maintenance.

电动型 Electric type：VGV-12-M

■ VGV-12-M 断路器可通过变电站 SCADA 系统遥控电动底盘车，从而实现断路器自动摇进摇出，可以实现变电站无人值守。 电缆分支箱、元件及配电系统
■ VGV-12-M circuit breaker through the substation SCADA system remote control electric chassis, in order to achieve the automatic rocker shake shake out, you
can achieve substation unattended.

智能型 smart：i-VGV-12

■ i-VGV-12 断路器配置有线圈电流传感器，可在线监测断路器合、分闸线圈波形。
■ i-VGV-12 断路器配置有电机回路电流传感器，可在线监测断路器储能电机、电动底盘车回路电流波形。
■ i-VGV-12 断路器配置有操作回路电压传感器，可在线监测断路器操作回路操作电压值。
■ i-VGV-12 断路器配置有角位移传感器，可在线监测断路器合分闸行程 - 时间特性。
■ i-VGV-12 断路器配置有弹簧拉力传感器，可在线监测断路器合闸弹簧拉力特性。
■ i-VGV-12 circuit breaker is equipped with a coil current sensor, can be monitored online circuit breaker, opening coil waveform. 电力总包工程
■ i-VGV-12 circuit breaker is equipped with a motor loop current sensor, can be online to monitor the circuit breaker energy storage motor, electric chassis circuit
current waveform.
■ The i-VGV-12 circuit breaker is equipped with an operating loop voltage sensor that monitors the operating voltage of the circuit breaker operating circuit.
■ The i-VGV-12 circuit breaker is equipped with an angular displacement sensor for on-line monitoring of the opening and closing times of the circuit breaker.
■ The i-VGV-12 circuit breaker is equipped with a spring tension sensor to monitor the spring tension characteristics of the circuit breaker on-line.

携手法腾、共创未来 082
