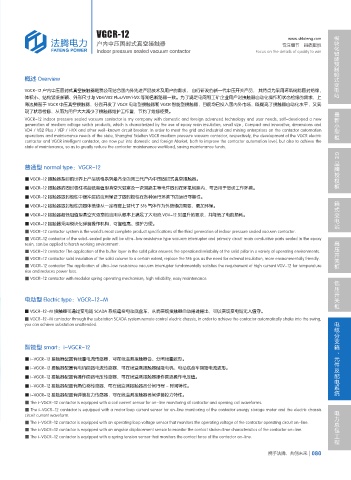

VGCR-12 模块化智能预制舱式变电站
www.shfateng.com
户内中压固封式真空接触器 专注细节 品质取胜
Indoor pressure sealed vacuum contactor Focus on the details of quality to win

概述 Overview

VGCR-12 户内中压固封式真空接触器是我公司结合国内外先进产品技术及用户的需求， 自行研发的新一代中压开关产品， 其特点为采用环氧树脂固封绝缘 ,
体积小、结构紧凑新颖、外形尺寸与 VD4/VB2 Plus/VEP/HVX 等知名断路器一致。为了满足电网和工矿企业用户对接触器自动化操作和状态检修的需求，上
海法腾基于 VGCR 中压真空接触器，分别开发了 VGCR 电动型接触器和 VGCR 智能型接触器，目前均已投入国内外市场，既提高了接触器自动化水平，又实
现了状态检修，从而为用户大大减少了接触器维护工作量，节约了维修经费。 最新小型柜
VGCR-12 indoor pressure sealed vacuum contactor is my company with domestic and foreign advanced technology and user needs, self-developed a new
generation of medium voltage switch products, which is characterized by the use of epoxy resin insulation, small size , Compact and innovative, dimensions and
VD4 / VB2 Plus / VEP / HVX and other well-known circuit breaker. In order to meet the grid and industrial and mining enterprises on the contactor automation
operations and maintenance needs of the state, Shanghai Fidelton VGCR medium pressure vacuum contactor, respectively, the development of the VGCR electric
contactor and VGCR intelligent contactor, are now put into domestic and foreign Market, both to improve the contactor automation level, but also to achieve the
state of maintenance, so as to greatly reduce the contactor maintenance workload, saving maintenance funds.
品牌授权柜 GE
普通型 normal type：VGCR-12

■ VGCR-12 接触器系目前世界上产品规格系列最齐全的第三代户内中压固封式真空接触器。
■ VGCR-12 接触器的固封极柱将超低阻值型真空灭弧室及一次回路主导电件固封在环氧树脂内，可适用于恶劣工作环境。
■ VGCR-12 接触器固封极柱中缓冲层的应用保证了固封极柱在各种运行环境下的运行可靠性。 箱式变电站
■ VGCR-12 接触器固封极柱的固体绝缘从一定程度上替代了 SF6 气体作为外绝缘的需要，更加环保。
■ VGCR-12 接触器超低阻值型真空灭弧室的应用从根本上满足了大电流 VGV-12 对温升的要求，并降低了电能损耗。
■ VGCR-12 接触器采用模块化弹簧操作机构，可靠性高、维护方便。
■ VGCR-12 contactor system is the world's most complete product specifications of the third generation of indoor pressure sealed vacuum contactor.
■ VGCR-12 contactor of the solid-sealed pole will be ultra-low resistance type vacuum interrupter and primary circuit main conductive parts sealed in the epoxy 高压开关柜
resin, can be applied to harsh working environment.
■ VGCR-12 contactor The application of the buffer layer in the solid pillar ensures the operational reliability of the solid pillar in a variety of operating environments.
■ VGCR-12 contactor solid insulation of the solid column to a certain extent, replace the SF6 gas as the need for external insulation, more environmentally friendly.
■ VGCR-12 contactor The application of ultra-low resistance vacuum interrupter fundamentally satisfies the requirement of high current VGV-12 for temperature
rise and reduces power loss.
■ VGCR-12 contactor with modular spring operating mechanism, high reliability, easy maintenance. 低压开关柜

电动型 Electric type：VGCR-12-M
■ VGCR-12-M 接触器可通过变电站 SCADA 系统遥控电动底盘车，从而实现接触器自动摇进摇出，可以实现变电站无人值守。
■ VGCR-12-M contactor through the substation SCADA system remote control electric chassis, in order to achieve the contactor automatically shake into the swing, 电缆分支箱、元件及配电系统
you can achieve substation unattended.

智能型 smart：i-VGCR-12

■ i-VGCR-12 接触器配置有线圈电流传感器，可在线监测接触器合、分闸线圈波形。
■ i-VGCR-12 接触器配置有电机回路电流传感器，可在线监测接触器储能电机、电动底盘车回路电流波形。
■ i-VGCR-12 接触器配置有操作回路电压传感器，可在线监测接触器操作回路操作电压值。
■ i-VGCR-12 接触器配置有角位移传感器，可在线监测接触器合分闸行程 - 时间特性。
■ i-VGCR-12 接触器配置有弹簧拉力传感器，可在线监测接触器合闸弹簧拉力特性。
■ The i-VGCR-12 contactor is equipped with a coil current sensor for on-line monitoring of contactor and opening coil waveforms.
■ The i-VGCR-12 contactor is equipped with a motor loop current sensor for on-line monitoring of the contactor energy storage motor and the electric chassis 电力总包工程
circuit current waveform.
■ The i-VGCR-12 contactor is equipped with an operating loop voltage sensor that monitors the operating voltage of the contactor operating circuit on-line.
■ The i-VGCR-12 contactor is equipped with an angular displacement sensor to monitor the contact stroke-time characteristics of the contactor on-line.
■ The i-VGCR-12 contactor is equipped with a spring tension sensor that monitors the contact force of the contactor on-line.

携手法腾、共创未来 080
