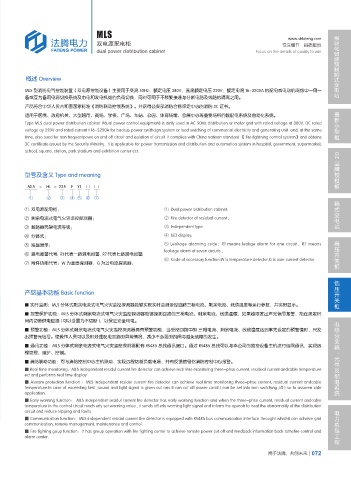

MLS 模块化智能预制舱式变电站
www.shfateng.com
双电源配电柜 专注细节 品质取胜
dual power distribution cabinet Focus on the details of quality to win

概述 Overview

MLS 型消防电气控制装置（双电源控制设备）主要用于交流 50Hz，额定电压 380V，直流额定电压 220V，额定电流 16~3200A 的配电或电动机网络中一用一
备或互为备用电源切换系统及市电和发电机组的负荷切换，同时可用于不频繁接通与分断电路及线路的隔离之用。
产品符合中华人民共和国国家标准《消防联动控制系统》。并获得公安部消防合格评定中心的消防 3C 证书。
最新小型柜
适用于医院、政府机关、大型超市、商场、学校、广场、车站、公园、体育场馆、会展中心等重要场所的输配电系统及自动化系统。
Type MLS dual power distribution cabinet 9dual power control equipment) is ainly used in AC 50Hz distribution or motor grid with rated voltage at 380V, DC rated
voltage ay 220V and rated current t 16~3200A for backup power swithcign system or load swiching of commercial electricity and generating unit and, at the same
time, also sued for non frequentpowe on and off circuit and isolation of circuit .It complies with China natioan standard 《 fire fightning control system》and obtains
3C certificate issued by the Security Ministry. It is applicable for power transmission and distribution and automation system in hospital, government, supermarket,
school, square, station, park stadium and exhibition center ect.
品牌授权柜 GE

型号及含义 Type and meaning

MLS - HL - 225 F Y1 □ □
① ② ③ ④ ⑤ ⑥ ⑦ 箱式变电站
① 双电源配电柜； ① Dual power sistribution cabinet;
② 剩余电流式电气火灾监控探测器； ② Fire detector of residual current ;
③ 断路器壳架电流等级； ③ Independent type
④ 分体式； ④ LED display;
高压开关柜
⑤ 液晶显示； ⑤ Leakage alarming code：R1 means leakge alarm for one circuit，R7 means
leakage alarm of seven circuits.;
⑥ 漏电报警代号：R1 代表一路漏电报警，R7 代表七路漏电报警；
⑥ Code of accessory function:W is temperature detector,G is over current detector.
⑦ 附件功能代号：W 为温度探测器，G 为过电流探测器；

低压开关柜

产品基本功能 Basic function

■ 实时监测：MLS 分体式剩余电流式电气火灾监控探测器能够实现实时监测受控回路三相电流、剩余电流、线缆温度等运行参数，并实时显示。
■ 报警保护功能：MLS 分体式剩余电流式电气火灾监控探测器能够探测回路的三相电流、剩余电流、线缆温度，如果越限发出声光信号报警，能在规定时
间内切断供电回路 ( 可以设置为不切断 )，以保证安全用电。 电缆分支箱、元件及配电系统
■ 预警功能：MLS 分体式剩余电流式电气火灾监控探测器具有预警功能，当受控回路中的 三相电流、剩余电流、线缆温度达到事先设定的预警值时，只发
出预警光信号。使操作人员可以及时处理配电回路的异常情况，减少不必要的跳闸与避免故障的发生。
■ 通讯功能：MLS 分体式剩余电流式电气火灾监控探测器配有 RS485 总线通讯接口。通过 RS485 总线可以与本公司的监控设备主机进行组网通讯，实现远
程管理、维护、控制。
■ 消防联动功能：可与消防控制中心主机联动，实现远程切断负载电源，并有反馈信号给消防控制中心报警。
■ Real time monitoring：MLS independent residul current fire detector can achieve real time monitoring three-phse current, residual current andcable temperature
ect and performs real time display
■ Alaram protection function ：MLS independent residul current fire detector can achieve real time monitoring three-phse current, residual current andcable
temperature.In case of exceeding limit ,sound and light signal is given out ans it can cut off power curcit ( can be set into non switching off ) so to assuren safe
application.
■ Early warning function： MLS independent residul current fire detector has early warning function and when the three-phse current, residual current andcable
temperature in the control circuit reach erly set warning value , it sends off erly warning light signal and inform the operotr to treat the abnormality of the distribution 电力总包工程
circuit and reduce tripping and faults.
■ Communication function：MLS independent residul current fire detector is equipped with RS485 bus communication interface throught whichit can achieve grid
communication, remote management, maintenance and control.
■ Fire fighting goup function：It has group operation with fire fighting center to achieve remote power cut off and feedback information back tothefire control and
alarm center.
