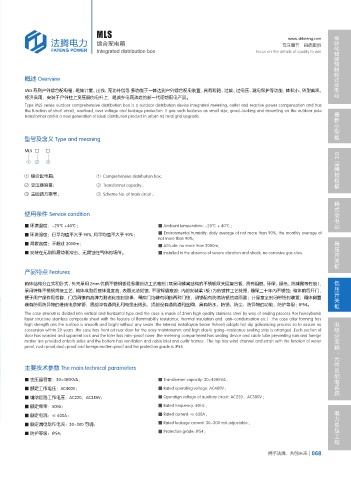

MLS 模块化智能预制舱式变电站
www.shfateng.com
综合配电箱 专注细节 品质取胜
Integrated distribution box Focus on the details of quality to win

概述 Overview

MLS 系列户外综合配电箱，是集计量、出线、无功补偿等 多功能于一体达到户外综合配电装置，具有短路、过载、过电压、漏电保护等功能，体积小、外型美观、
经济实用，安装于户外柱上变压器的电杆上，是城乡电网改造的新一代理想配电产品。
Type MLS series outdoor comprehensive distribution box is a outdoor distribution device integrated metering, outlet and reactive power compensation and has
the function of short circuit, overload, over voltage and leakage protection .It gas such features as small size, good-looking and mounting on the outdoor pole 最新小型柜
transformer and is a new generation of ideal distribution product in urban nd rural grid upgrade.

型号及含义 Type and meaning

MLS □ □
品牌授权柜 GE
① ② ③

① 综合配电箱； ① Comprehensive distribution box;
② 变压器容量； ② Transformer capacity ;
③ 主回路方案号； ③ Scheme No. of main circuit ;
箱式变电站

使用条件 Service condition

■ 环境温度：-25℃ +40℃； ■ Ambient temperature: -25℃ + 40℃ ;
■ 环境湿度：日平均值不大于 90%, 月平均值不大于 90%； ■ Environmental humidity: daily average of not more than 90%, the monthly average of
not more than 90%; 高压开关柜
■ 海拔高度：不超过 2000m；
■ Altitude: no more than 2000m;
■ 安装在无剧烈震动和冲击、无腐蚀性气体的场所。 ■ installed in the absence of severe vibration and shock, no corrosive gas sites.

产品特点 Features
低压开关柜
箱体结构分立式和卧式，外壳采用 2mm 优质不镑钢板经多重折边工艺弯制 ( 或采用蜂窝结构的不锈钢双夹层复合板，具有阻燃、环保、隔热、防凝露等性能 )，
采用特殊不锈钢焊接工艺，箱体成型后整体强度高，表面光洁如镜，不留焊缝痕迹；内部安装梁 ( 板 ) 为热镀锌工艺处理，确保二十年内不锈蚀；箱体前后开门，
便于用户操作和检修，门四周镶有高弹力耐老化密封胶条，每扇门均装有明暗两种门锁，明锁配有防堵防锈的遮雨罩；计量室全封闭带铅封装置；箱体侧面
装有防雨防异物的进线电缆穿管，底部冲有通风孔和电缆出线孔，顶部设有通风道和丝网，具有防水、防锈、防尘、防异物的功能，防护等级：IP54。
The case strucutr is divided into vertical and horizontal type and the case is made of 2mm high quality stainless steel by way of ending process 9or honeybomb
layer structure stainless composite sheet with the feature of flammability resistance, thermal insulation and anti-condensation etc ) . the case after forming has 电缆分支箱、元件及配电系统
high strength ans the surface is smooth and bright without any seam .the internal installayion beam 9sheet) adopts hot dip galvanizing process so to assure no
cossorsion within 20 years .the case has front ad rear door for the easy maintenannc and high elastic gaing-resistance sealing strip is arranged .Each section of
door has warded and spparent lock and the later has rain-proof cover .the metering compartment has sealing device and cable tube preventing rain and foreign
matter are provided onboth sides and the bottom has ventilation and cable inlet and ourltr homes . The top has wind channel and emsh with the function of water
proof, rust-proof,dust-proof and foreign matter-proof and the protection grade is IP54.

主要技术参数 The main technical parameters

■ 变压器容量：30-400KVA； ■ Transformer capacity: 30-400KVA ;
■ 额定工作电压：AC400V； ■ Rated operating voltage: AC400V ;
■ 辅助回路工作电压：AC220，AC380V； ■ Operatign voltage of auxiliary circuit: AC220，AC380V ;
■ 额定频率：50Hz； ■ Rated frequency: 50Hz ; 电力总包工程
■ 额定电流：≤ 630A； ■ Rated current: ≤ 630A ;
■ 额定漏电动作电流：30~300 可调； ■ Rated leakage current: 30~300 mA adjustable ;
■ Protection grade: IP54 ;
■ 防护等级：IP54；

携手法腾、共创未来 068
