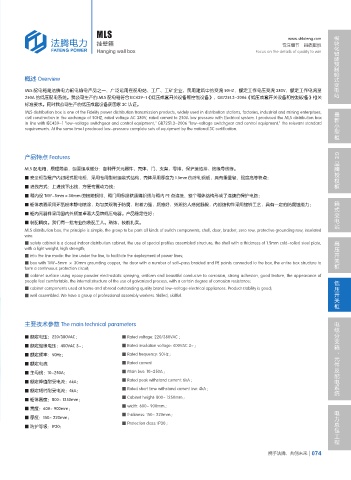

MLS 模块化智能预制舱式变电站
www.shfateng.com
挂壁箱 专注细节 品质取胜
Hanging wall box Focus on the details of quality to win

概述 Overview

MLS 配电箱是法腾电力配电输电产品之一，广泛运用在配电站、工厂、工矿企业、民用建筑中的交流 50HZ，额定工作电压交流 380V，额定工作电流至
250A 的低压配电系统。我公司生产的 MLS 配电箱符合 IEC439-1《低压成套开关设备和控制设备》，GB7251.3-2006《低压成套开关设备和控制设备》相关
标准要求。同时我公司生产的低压成套设备获国家 3C 认证。
最新小型柜
MLS distribution box is one of the Fidelity power distribution transmission products, widely used in distribution stations, factories, industrial and mining enterprises,
civil construction in the exchange of 50HZ, rated voltage AC 380V, rated current to 250A low pressure with Electrical system. I produced the MLS distribution box
in line with IEC439-1 "low-voltage switchgear and control equipment," GB7251.3-2006 "low-voltage switchgear and control equipment," the relevant standard
requirements. At the same time I produced low-pressure complete sets of equipment by the national 3C certification.

产品特点 Features GE
品牌授权柜
MLS 配电箱，原理简单，组要组成部分：各种开关元器件、壳体、门、支架、零排、保护接地排、绝缘导线等。
■ 安全柜型是户内封闭式配电柜，采用专用型材组装式结构，壳体采用厚度为 1.5mm 的冷轧钢板，具有重量轻，强度高等特点；
■ 进线方式：上进线下出线，方便布置动力线；
■ 箱内设 TMY-5mm×30mm 的接地铜排，箱门用多股软通编织线与箱内 PE 点连接，整个箱体结构形成了连续的保护电路；
箱式变电站
■ 柜体表面采用环氧粉末静电喷涂，均匀美观利于防腐，附着力强，质感好，外观给人感觉舒服，内部结构件采用镀锌工艺，具有一定的防腐蚀能力；
■ 柜内元器件采用国内外质量卓著大品牌低压电器。产品稳定性好；
■ 装配精良。我们有一批专业的装配工人。熟练、技能扎实。
MLS distribution box, the principle is simple, the group to be part: all kinds of switch components, shell, door, bracket, zero row, protective grounding row, insulated
wire. 高压开关柜
■ safety cabinet is a closed indoor distribution cabinet, the use of special profiles assembled structure, the shell with a thickness of 1.5mm cold-rolled steel plate,
with a light weight, high strength;
■ into the line mode: the line under the line, to facilitate the deployment of power lines;
■ box with TMY-5mm × 30mm grounding copper, the door with a number of soft-pass braided and PE points connected to the box, the entire box structure to
form a continuous protection circuit;
■ cabinet surface using epoxy powder electrostatic spraying, uniform and beautiful conducive to corrosion, strong adhesion, good texture, the appearance of 低压开关柜
people feel comfortable, the internal structure of the use of galvanized process, with a certain degree of corrosion resistance;
■ cabinet components used at home and abroad outstanding quality brand low-voltage electrical appliances. Product stability is good;
■ well assembled. We have a group of professional assembly workers. Skilled, skillful.

电缆分支箱、元件及配电系统
主要技术参数 The main technical parameters

■ 额定电压：220/380VAC； ■ Rated voltage: 220/380VAC ;
■ 额定绝缘电压：400VAC 3~； ■ Rated insulation voltage: 400VAC 3~ ;
■ 额定频率：50Hz； ■ Rated frequency: 50Hz ;
■ 额定电流 ■ Rated current
■ 主母线：10~250A； ■ Main bus: 10~250A ;
■ 额定峰值耐受电流：6kA； ■ Rated peak withstand current: 6kA ;
■ 额定短时耐受电流：4kA； ■ Rated short time withstand current icw: 4kA ;
■ Cabinet height: 800~ 1250mm ;
■ 柜体高度：800~ 1250mm；
■ width: 600~ 900mm ;
■ 宽度：600~ 900mm； 电力总包工程
■ thickness: 150~ 220mm ;
■ 厚度：150~ 220mm；
■ Protection class: IP30 ;
■ 防护等级：IP30；
