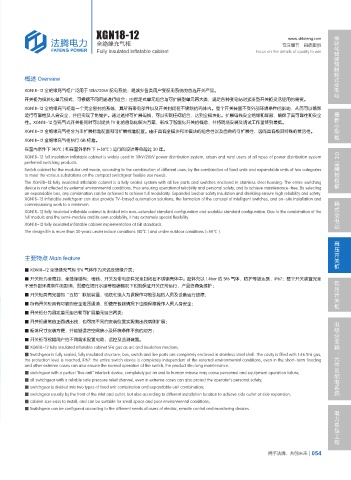

XGN18-12 模块化智能预制舱式变电站
www.shfateng.com
全绝缘充气柜 专注细节 品质取胜
Fully insulated inflatable cabinet Focus on the details of quality to win

概述 Overview

XGN18-12 全绝缘充气柜广泛用于 10kV/20kV 配电系统，是城乡各类用户变配电系统的首选开关产品。
开关柜为模块化单元模式，可根据不同用途进行组合；由固定式单元组合与可扩展型单元两大类，满足各种变电站对紧凑型开关柜灵活使用的需要。
XGN18-12 全绝缘充气柜是一个完全密封的系统，其所有带电部件以及开关封闭在不锈钢的壳体内。整个开关装置不受外部环境条件的影响，从而可以确保 最新小型柜
运行可靠性及人身安全，并且实现了免维护。通过选择可扩展母线，可以实现任何组合，达到全模块化。扩展母线安全绝缘和屏蔽，确保了高可靠性和安全
性。XGN18-12 型充气式开关柜同时可以提供 TV 化的自动化解决方案，形成了智能化开关的概念，并将现场安装及调试工作量降到最低。
XGN18-12 全绝缘充气柜分为非扩展标准配置和可扩展标准配置。由于具有全模块和半模块的组合性以及自身的可扩展性，因而具有极其特殊的灵活性。
XGN18-12 全绝缘充气柜执行 GB 标准。
在室内条件下 (40℃ ) 和在室外条件下 (-50℃ ) 运行的设计寿命超过 30 年。
XGN18-12 full insulation inflatable cabinet is widely used in 10kV/20kV power distribution system, urban and rural users of all types of power distribution system GE
品牌授权柜
preferred switching products.
Switch cabinet for the modular unit mode, according to the combination of different uses; by the combination of fixed units and expandable units of two categories
to meet the various substations on the compact switchgear flexible use needs.
The XGN18-12 fully insulated inflatable cabinet is a fully sealed system with all live parts and switches enclosed in stainless steel housing. The entire switching
device is not affected by external environmental conditions, thus ensuring operational reliability and personal safety, and to achieve maintenance-free. By selecting
an expandable bus, any combination can be achieved to achieve full modularity. Expanded busbar safety insulation and shielding ensure high reliability and safety.
XGN18-12 inflatable switchgear can also provide TV-based automation solutions, the formation of the concept of intelligent switches, and on-site installation and 箱式变电站
commissioning work to a minimum.
XGN18-12 fully insulated inflatable cabinet is divided into non-extended standard configuration and scalable standard configuration. Due to the combination of the
full module and the semi-module and its own scalability, it has extremely special flexibility.
XGN18-12 fully insulated inflatable cabinet implementation of GB standards.
The design life is more than 30 years under indoor conditions (40℃ ) and under outdoor conditions (-50℃ ).
高压开关柜

主要特点 Main feature

■ XGN18-12 全绝缘充气柜 SF6 气体作为灭弧及绝缘介质；
■ 开关柜为全密封、全绝缘结构；母线、开关及带电部件完全封闭在不锈钢壳体中。腔体充以 1.4bar 的 SF6 气体，防护等级达到，IP67：整个开关装置完全 低压开关柜
不受外部环境条件的影响，即使在短时水浸等极端情况下也能保证开关正常运行，产品终身免维护；
■ 开关柜具有完善的“五防”联锁装置，彻底杜绝人为误操作可能引起的人员及设备运行故障；
■ 所有开关柜具有可靠的安全泄压通道，即使在极端情况下也能保障操作人员人身安全；
■ 开关柜分为固定单元组合和可扩展单元组合两类；
电缆分支箱、元件及配电系统
■ 开关柜通常由正面进出线，也可按不同的安装位置实现侧出线或侧扩展；
■ 柜体尺寸安装方便，并能够适合空间狭小及环境条件不良的地方；
■ 开关柜可根据用户的不同需求配置电动、远控及监测装置。
■ XGN18-12 fully insulated inflatable cabinet SF6 gas as arc and insulation medium;
■ Switchgear is fully sealed, fully insulated structure; bus, switch and live parts are completely enclosed in stainless steel shell. The cavity is filled with 1.46 SF6 gas,
the protection level is reached, IP67: the entire switch device is completely independent of the external environmental conditions, even in the short-term flooding
and other extreme cases can also ensure the normal operation of the switch, the product life-long maintenance.
■ switchgear with a perfect "five anti" interlock device, completely put an end to human misuse may cause personnel and equipment operation failure;
■ all switchgear with a reliable safe pressure relief channel, even in extreme cases can also protect the operator's personal safety;
■ switchgear is divided into two types of fixed unit combination and expandable unit combination;
■ switchgear usually by the front of the inlet and outlet, but also according to different installation location to achieve side outlet or side expansion;
■ cabinet size easy to install, and can be suitable for small space and poor environmental conditions;
■ Switchgear can be configured according to the different needs of users of electric, remote control and monitoring devices. 电力总包工程
