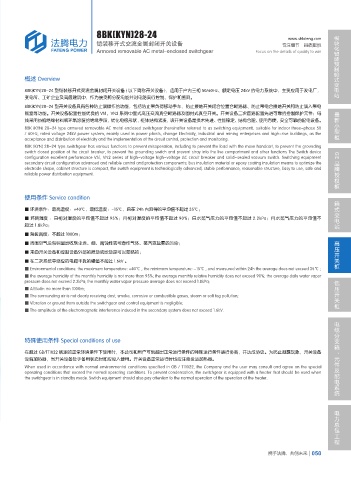

8BK(KYN)28-24 模块化智能预制舱式变电站
www.shfateng.com
铠装移开式交流金属封闭开关设备 专注细节 品质取胜
Armored removable AC metal-enclosed switchgear Focus on the details of quality to win

概述 Overview

8BK(KYN)28-24 型铠装移开式交流金属封闭开关设备 ( 以下简称开关设备 )，适用于户内三相 50/60Hz、额定电压 24kV 的电力系统中，主要应用于发电厂，
变电所、工矿企业及高层建筑中，作为接受和分配电能并对电路实行控制、保护和监测。
8BK(KYN)28-24 型开关设备具有各种防止误操作的功能，包括防止带负荷移动手车，防止接地开关闭合位置合断路器、防止带电合接地开关和防止误入带电 最新小型柜
隔室等功能。开关设备配置性能优良的 VS1、VN2 系列中置式高压交流真空断路器及固封式真空开关。开关设备二次回路配置先进可靠的控制保护元件；母
线采用热缩绝缘材料或环氧涂覆的绝缘手段，优化电极形状，柜体结构紧凑，该开关设备是技术先进、性能稳定、结构合理、使用方便、安全可靠的配电设备。
8BK (KYN) 28-24 type armored removable AC metal enclosed switchgear (hereinafter referred to as switching equipment), suitable for indoor three-phase 50
/ 60Hz, rated voltage 24kV power system, mainly used in power plants, change Electricity, industrial and mining enterprises and high-rise buildings, as the
acceptance and distribution of electricity and the implementation of the circuit control, protection and monitoring.
8BK (KYN) 28-24 type switchgear has various functions to prevent misoperation, including to prevent the load with the move handcart, to prevent the grounding
switch closed position of the circuit breaker, to prevent the grounding switch and prevent stray into the live compartment and other functions The Switch device
configuration excellent performance VS1, VN2 series of high-voltage high-voltage AC circuit breaker and solid-sealed vacuum switch. Switching equipment GE
品牌授权柜
secondary circuit configuration advanced and reliable control and protection components; bus insulation material or epoxy coating insulation means to optimize the
electrode shape, cabinet structure is compact, the switch equipment is technologically advanced, stable performance, reasonable structure, Easy to use, safe and
reliable power distribution equipment.

使用条件 Service condition 箱式变电站
■ 环境条件：最高温度：+40℃，最低温度：-15℃，且在 24h 内测得的平均值不超过 35℃；
■ 环境湿度 ：日相对湿度的平均值不超过 95%；月相对湿度的平均值不超过 90%；日水蒸气压力的平均值不超过 2.2kPa；月水蒸气压力的平均值不
超过 1.8kPa；
■ 海拔高度：不超过 1000m；
高压开关柜
■ 周围空气没有明显地收到尘埃、烟、腐蚀性或可燃性气体、蒸汽或盐雾的污染；
■ 来自开关设备和控制设备外部的振动或地动是可以忽略的；
■ 在二次系统中感应的电磁干扰的幅值不超过 1.6kV 。
■ Environmental conditions: the maximum temperature: +40℃ , the minimum temperature: -15℃ , and measured within 24h the average does not exceed 35℃ ;
■ the average humidity of the monthly humidity is not more than 95%; the average monthly relative humidity does not exceed 90%; the average daily water vapor 低压开关柜
pressure does not exceed 2.2kPa; the monthly water vapor pressure average does not exceed 1.8kPa;
■ Altitude: no more than 1000m;
■ The surrounding air is not clearly receiving dust, smoke, corrosive or combustible gases, steam or salt fog pollution;
■ Vibration or ground from outside the switchgear and control equipment is negligible;
■ The amplitude of the electromagnetic interference induced in the secondary system does not exceed 1.6kV.
电缆分支箱、元件及配电系统

特殊使用条件 Special conditions of use

在超过 GB/T11022 规定的正常环境条件下使用时，本公司和用户可就超出正常运行条件的特殊运行条件进行协商，并达成协议。为防止凝露现象，开关设备
设有加热器，当开关设备处于备用状态时即应投入使用。开关设备正常运行时也应注意投运加热器。
When used in accordance with normal environmental conditions specified in GB / T11022, the Company and the user may consult and agree on the special
operating conditions that exceed the normal operating conditions. To prevent condensation, the switchgear is equipped with a heater that should be used when
the switchgear is in standby mode. Switch equipment should also pay attention to the normal operation of the operation of the heater.

电力总包工程

携手法腾、共创未来 050
