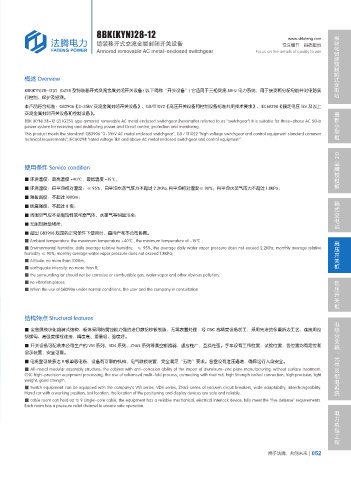

8BK(KYN)28-12 模块化智能预制舱式变电站
www.shfateng.com
铠装移开式交流金属封闭开关设备 专注细节 品质取胜
Armored removable AC metal-enclosed switchgear Focus on the details of quality to win

概述 Overview

8BK(KYN)28-12(Z) (GZS1) 型铠装移开式交流金属封闭开关设备 ( 以下简称“开关设备”) 它适用于三相交流 50Hz 电力系统，用于接受和分配电能并对电路实
行控制、保护及监测。
本产品符合标准：GB3906《3~35kV 交流金属封闭开关设备》、GB/T11022《高压开关设备和控制设备标准共用技术要求》、IEC60298《额定电压 1kV 及以上 最新小型柜
交流金属封闭开关设备和控制设备》。
8BK (KYN) 28-12 (Z) (GZS1) type armored removable AC metal enclosed switchgear (hereinafter referred to as "switchgear") It is suitable for three-phase AC 50Hz
power system for receiving and distributing power and Circuit control, protection and monitoring.
This product meets the standard: GB3906 "3~35kV AC metal enclosed switchgear", GB / T11022 "high voltage switchgear and control equipment standard common
technical requirements", IEC60298 "rated voltage 1kV and above AC metal enclosed switchgear and control equipment".

品牌授权柜 GE
使用条件 Service condition

■ 环境温度：最高温度 +40℃，最低温度 -15℃；
■ 环境湿度：日平均相对湿度：≤ 95%，日平均水蒸气压力不超过 2.2KPa; 月平均相对湿度≤ 90%；月平均水蒸气压力不超过 1.8KPa；
■ 海拔高度：不超过 1000m； 箱式变电站
■ 地震强度：不超过 8 级；
■ 周围空气应不受腐蚀性或可燃气体、水蒸气等明显污染；
■ 无剧烈振动场所；
■ 超出 GB3906 规定的正常条件下使用时，由用户和本公司协商。
高压开关柜
■ Ambient temperature: the maximum temperature +40℃ , the minimum temperature of -15℃ ;
■ Environmental humidity: daily average relative humidity: ≤ 95%, the average daily water vapor pressure does not exceed 2.2KPa; monthly average relative
humidity ≤ 90%; monthly average water vapor pressure does not exceed 1.8KPa;
■ Altitude: no more than 1000m;
■ earthquake intensity: no more than 8;
■ the surrounding air should not be corrosive or combustible gas, water vapor and other obvious pollution;
低压开关柜
■ no vibration places;
■ When the use of GB3906 under normal conditions, the user and the company in consultation.

结构特点 Structural features 电缆分支箱、元件及配电系统
■ 全金属模块化组装式结构，柜体采用防腐蚀能力强的进口敷铝锌板制造，无需表面处理，经 CNC 高精度设备加工，采用先进的多重折边工艺，连接用拉
铆螺母、高强度螺栓连接，精度高、重量轻、强度好。
■ 开关设备可配装本公司生产的 VS1 系列、VD4 系列、ZN65 系列等真空断路器，适应性广，互换性强。手车设有工作位置，试验位置，各位置均有定位和
显示装置，安全可靠。
■ 电缆室可装多达 9 根单芯电缆，设备有可靠的机械、电气联锁装置，完全满足“五防”要求。各室设有泄压通道，确保运行人身安全。
■ All-metal modular assembly structure, the cabinet with anti-corrosion ability of the import of aluminum-zinc plate manufacturing, without surface treatment,
CNC high-precision equipment processing, the use of advanced multi-fold process, connecting with rivet nut, high Strength bolted connection, high precision, light
weight, good strength.
■ Switch equipment can be equipped with the company's VS1 series, VD4 series, ZN65 series of vacuum circuit breakers, wide adaptability, interchangeability.
Hand car with a working position, test location, the location of the positioning and display devices are safe and reliable.
■ cable room can hold up to 9 single-core cable, the equipment has a reliable mechanical, electrical interlock device, fully meet the "five defense" requirements.
Each room has a pressure relief channel to ensure safe operation.
电力总包工程

携手法腾、共创未来 052
