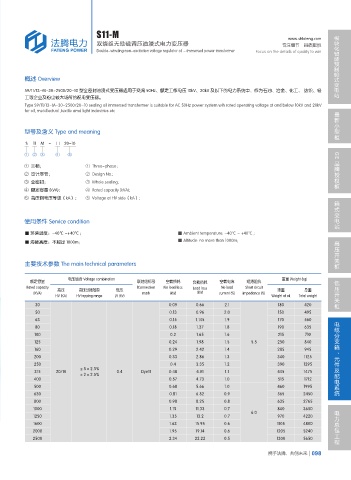

S11-M                                                                              模块化智能预制舱式变电站
                                                                                                    www.shfateng.com
                                  双绕组无励磁调压油浸式电力变压器                                                专注细节    品质取胜
                                  Double-winding non-excitation voltage regulator oil - immersed power transformer  Focus on the details of quality to win




          概述 Overview

          S9/11/13-M-30~2500/20-10 型全密封油浸式变压器适用于交流 50Hz、额定工作电压 10kV、20kV 及以下的电力系统中,作为石油、冶金、化工、 纺织、轻
          工等企业及粉尘较大场所的配电变压器。
          Type S9/11/13-M-30~2500/20-10 sealing oil immersed transformer is suitable for AC 50Hz power system wih rated operating voltage at and below 10kV and 20kV
          for oil, metullectual ,textile amd light industries etc                                                    最新小型柜



         型号及含义 Type and meaning
          S     11    M    -    □    20-10

          ① ② ③     ④   ⑤                                                                                           GE
                                                                                                                     品牌授权柜
         ①  三相;               ①  Three-phase ;
         ②  设计序号;             ②  Design No.;
         ③  全密封;              ③  Whole sealing;
         ④  额定容量 (kVA);       ④  Rated capacity (kVA);
         ⑤  高压侧电压等级(kA);      ⑤  Voltage at HV side(kA);                                                             箱式变电站



         使用条件 Service condition

          ■ 环境温度:-40℃ ~+40℃;                                  ■ Ambient temperature: -40℃ ~ +40℃ ;
          ■ 海拔高度:不超过 1000m;                                   ■ Altitude: no more than 1000m;                        高压开关柜


          主要技术参数 The main technical parameters


                        电压组合 Voltage combination                                                  重量 Weight (kg)     低压开关柜
           额定容量                                 联结组标号     空载损耗     负载损耗      空载电流     短路阻抗
          Rated capacity  高压  高压分接范围     低压     lConnection   No load loss  Load loss  No load  Short circuit   油重  总重
             (KVA)                                mark     (kW)      (kW)   current (%)  impedance (%)
                    HV (KA)  HV tapping range   LV (kV)                                       Weight of oil   Total weight
             30                                            0.09     0.66      2.1                180      420
             50                                            0.13     0.96      2.0                150      495
             63                                            0.15     1.145     1.9                170      560        电缆分支箱、元件及配电系统
             80                                            0.18      1.37     1.8                190      635
             100                                            0.2      1.65     1.6                215      710
             125                                           0.24      1.98     1.5      5.5      250       840
             160                                           0.29     2.42      1.4               285       945
             200                                           0.33     2.86      1.3               340       1125
             250                                            0.4     3.35      1.2               390      1295
                            ±5×2.5%
             315    20/10                0.4      Dyn11    0.48      4.01     1.1               445      1475
                            ±2×2.5%
             400                                           0.57     4.73      1.0                515      1712
             500                                           0.68     5.66      1.0               460      1995
             630                                           0.81     6.82      0.9               565      2450
             800                                           0.98     8.25      0.8               635      2765
            1000                                           1.15     11.33     0.7               840      3650        电力总包工程
                                                                                       6.0
            1250                                           1.35      13.2     0.7               970      4220
            1600                                           1.63     15.95     0.6               1105     4800
            2000                                           1.95     19.14     0.6               1205     5240
            2500                                           2.34     22.22     0.5               1300     5650

                                                                                             携手法腾、共创未来      098
