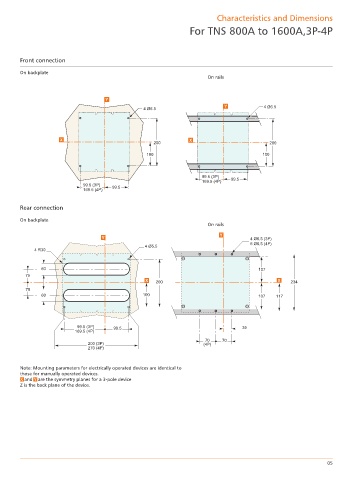

Characteristics and Dimensions
For TNS 800A to 1600A,3P-4P
Front connection
On backplate
On rails
Y
Y 4 Ø6.5
4 Ø6.5
X X
200 200
100 100
99.5 (3P) 99.5
169.5 (4P)
99.5 (3P) 99.5
169.5 (4P)
Rear connection
On backplate
On rails
Y
Y 4 Ø6.5 (3P)
6 Ø6.5 (4P)
4 Ø5.5
4 R30
60 107
75
X 200 X 234
75
60 100 107 117
99.5 (3P) 99.5 35
169.5 (4P)
70 70
200 (3P) (4P)
270 (4P)
Note: Mounting parameters for electrically operated devices are identical to
those for manually operated devices.
X and Y are the symmetry planes for a 3-pole device
Z is the back plane of the device.
